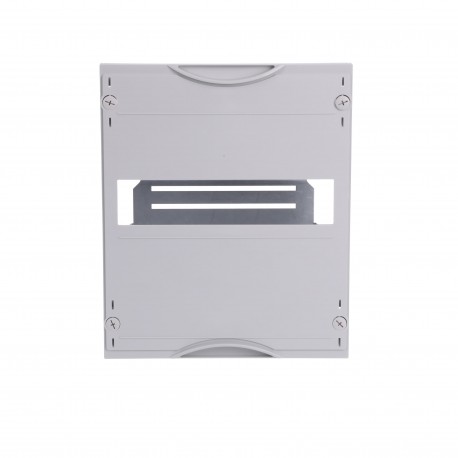

2CPX041643R9999 ABB MBA190T Tmax T1-T3 Kit, H300xA250, 2Hx1A

2CPX041643R9999

041643

ABB

1 Pcs.

MBA190T Tmax T1-T3 Kit, H300xA250, 2Hx1A Main circuit breaker Tmax 300 mm x 250 mm x 120 mm , 000 , 1

Automation > Distributor assembly switch
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An MBA190T Tmax T1-T3 Kit, H300xA250, 2Hx1A functions as an interior module kit for housing molded case circuit breakers inside modular electrical distribution boards. Engineered by Abb under part number 2CPX041643R9999, it provides the required framework for mounting protective switching devices securely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated Operational Current (I e ): 250 A
  • Number of Poles: 4P
  • Number of Switches: 0
  • Enclosure Module Equipment: Excludes Devices
  • Enclosure Mounting Frame: WR or EDF
  • Device: XT1, XT3
  • Enclosure Type: Interior fitting module
  • Enclosure Type of Height: 000
  • Meter Type: "
  • DIN Place Units: 24
  • Meter Boards: 0
  • Module Function: Main circuit breaker Tmax
  • Rated Operational Voltage: Maximum 400 V
  • Operational Voltage: 400 V
  • Rated Insulation Voltage (U i ): 690 V
  • Rated Impulse Withstand Voltage (U imp ): 6 kV

More info

▲
Technical
Rated Operational Current (Ie)250 A
Number of Poles4P
Number of Switches0
Enclosure Module EquipmentExcludes Devices
Enclosure Mounting FrameWR or EDF
DeviceXT1, XT3
Enclosure TypeInterior fitting module
Enclosure Type of Height000
Meter Type"
DIN Place Units24
Meter Boards0
Module FunctionMain circuit breaker Tmax
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Insulation Voltage (Ui)690 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Current (In)250 A
Design
ColorLight grey
Number of Modules24
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width250 mm
Product Net Height300 mm
Product Net Depth / Length120 mm
Product Net Weight1.21 kg
Section Width1
Built-In Depth (t2)120 mm
Engineering
EPLAN Data9AAF623206_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight1.21 kg
E-Number (Norway)2437749
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC112309M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001897 - Distributor assembly switch
ETIM 10EC001897 - Distributor assembly switch
eClassV11.0 : 27400611
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2
