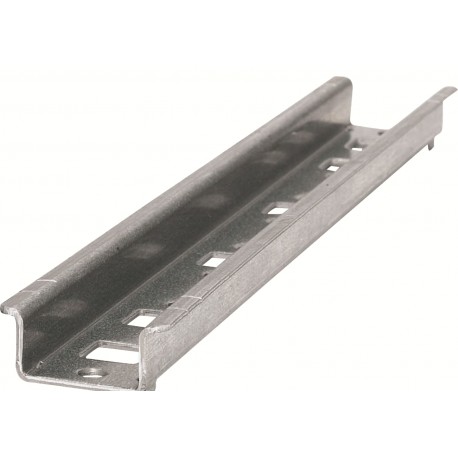

2CPX039383R9999 ABB ED3 DIN Profile 35x15, (3 widths)
2CPX039383R9999
039383
ABB
1 Pcs.
Automation > Mounting rail
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB ED3 DIN Profile 35x15, (3 widths) identified by part number 2CPX039383R9999 serves as a standard profile rail for organizing electrical and automation components within modular distribution boards. These profiles allow engineers to efficiently mount breakers, contactors, and interface modules side by side. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model Number: DIN rail (top hat rail) 35/15 mm
- Enclosure Type: Mounting rail
- Meter Type: "
- DIN Place Units: 0
- Meter Boards: 0
- Shape: Square hole
- Surface Finishing: Sendzimir galvanized
- Material: Steel
- RoHS Declaration: 2CPC100019X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20250916
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240902
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
More info
▲| Technical | |
|---|---|
| Model Number | DIN rail (top hat rail) 35/15 mm |
| Enclosure Type | Mounting rail |
| Meter Type | " |
| DIN Place Units | 0 |
| Meter Boards | 0 |
| Design | |
| Shape | Square hole |
| Surface Finishing | Sendzimir galvanized |
| Material | Steel |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 744 mm |
| Product Net Height | 35 mm |
| Product Net Depth / Length | 15 mm |
| Product Net Weight | 0.47 kg |
| Thickness | 1.5 mm |
| Engineering | |
| EPLAN Data | 9AAF623180_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.489 kg |
| E-Number (Norway) | 2444486 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001285 - Mounting rail |
| ETIM 10 | EC001285 - Mounting rail for electrical/industrial control equipment |
| eClass | V11.0 : 27400602 |
| Object Classification Code | U |
