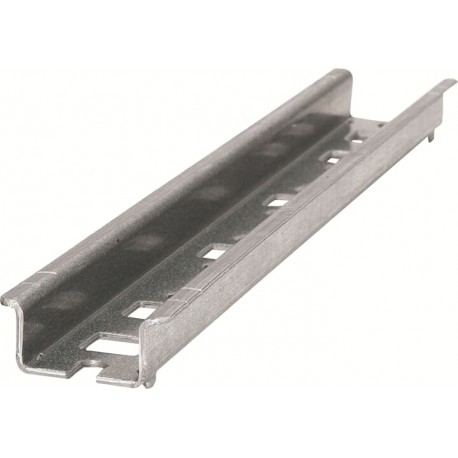

ABB 2CPX039252R9999 2CPX039252R9999 ABB ED52 DIN profile profundid.regulable (2A) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX039252R9999 ABB ED52 DIN profile profundid.regulable (2A)

2CPX039252R9999

039252

ABB

1 Pcs.

ED52 DIN profile profundid.regulable (2A) Mounting rail, 35 mm x 438 mm x 15 mm

Automation > Mounting rail
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb ED52 DIN profile profundid.regulable (2A) functions as a structural support rail for mounting modular electrical devices, terminal blocks, and control gear safely inside distribution boards. Standardized mounting rails streamline panel building by allowing various components to snap securely into place.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: DIN rail (top hat rail) 35/15 mm
  • Enclosure Type: Mounting rail
  • DIN Place Units: 0
  • Meter Boards: 0
  • Shape: Square hole
  • Surface Finishing: Sendzimir galvanized
  • Material: Steel
  • RoHS Declaration: 2CPC100019X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240903
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • Product Net Width: 438 mm

More info

▲
Technical
Model NumberDIN rail (top hat rail) 35/15 mm
Enclosure TypeMounting rail
DIN Place Units0
Meter Boards0
Design
ShapeSquare hole
Surface FinishingSendzimir galvanized
MaterialSteel
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width438 mm
Product Net Height35 mm
Product Net Depth / Length15 mm
Product Net Weight0.27 kg
Thickness1.5 mm
Engineering
EPLAN Data9AAF623180_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.281 kg
E-Number (Norway)2407812
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
External Classifications and Standards
ETIM 9EC001285 - Mounting rail
ETIM 10EC001285 - Mounting rail for electrical/industrial control equipment
eClassV11.0 : 27400602
Object Classification CodeU
