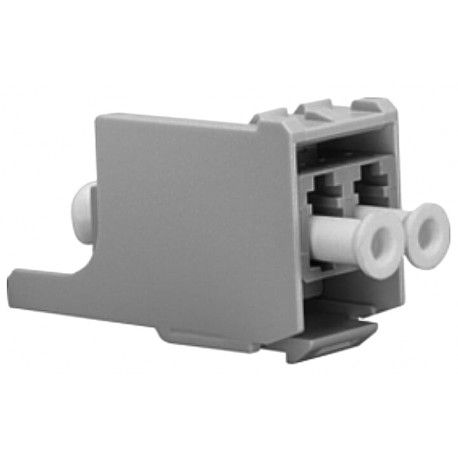

2CPX039249R9999 ABB ZE319 Op DAT module LC (Ph-Br)
2CPX039249R9999
2CPX039249R9999
ABB
1 Pcs.
ZE319 Op DAT module LC (Ph-Br)
OpDAT module LC (Ph-Br), LC duplex-couplings with adaptor, metal guide sleeve (Ph-Br), slotted for multimode applications
Connectors > Modular connector
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Extended Product Type:
- ZE319
- Product ID:
- 2CPX039249R9999
- EAN:
- 4011617392491
- Catalog Description:
- ZE319 Conversion kit
- Long Description:
- OpDAT module LC (Ph-Br), LC duplex-couplings with adaptor, metal guide sleeve (Ph-Br), slotted for multimode applications
Technical
- Model Number:
- Bus (jack)
- Enclosure Type:
- Conversion kit
- RAL Number:
- RAL 7035 - Light Grey
- Color:
- Light grey
Material Compliance
- RoHS Information:
- 2CPC100008X0201
2CPC100009X0201
2CPC100022X0202
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date:
- 20230918
- REACH Declaration:
- 2CPC100005X0201
- REACH Information:
- False - does not contains substances > 0.1 mass percentage
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 16.5mm
- Product Net Height:
- 21.9mm
- Product Net Depth / Length:
- 29.6mm
- Product Net Weight:
- 0.008kg
Ordering
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Gross Weight:
- 0.008 kg
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CPC100008X0201
2CPC100009X0201
2CPC100022X0202
Installation
- Instructions and Manuals:
- No document needed
Popular Downloads
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
Classifications
- ETIM 8:
- EC001121 - Modular connector
- ETIM 9:
- EC001121 - Modular connector
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85366910
- eClass:
- V11.0 : 27440390
- Object Classification Code:
- U
