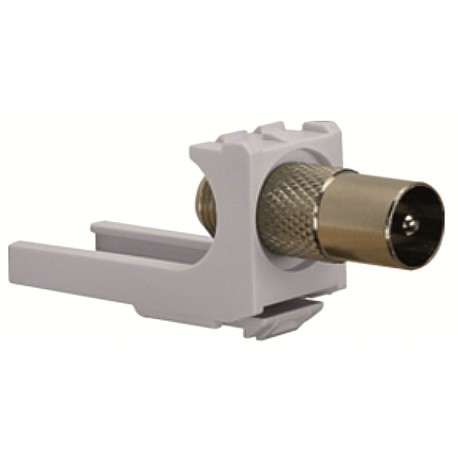

2CPX039248R9999 ABB ZE318 COAX Modul IEC
2CPX039248R9999
2CPX039248R9999
ABB
1 Pcs.
Connectors > Modular connector
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part number 2CPX039248R9999 is a coaxial IEC module conversion kit used in modular distribution systems and multimedia wall enclosures. This component allows technicians to integrate coaxial television and radio signals into standard modular mounting frames for structured home or office wiring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model Number: Plug
- Enclosure Type: Conversion kit
- RAL Number: RAL 7035 - Light Grey
- Color: Light grey
- RoHS Declaration: 2CPC100008X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20240916;20230921
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240902
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Consumer
- Product Net Width: 16.3 mm
- Product Net Height: 22.3 mm
- Product Net Depth / Length: 27.8 mm
More info
▲| Technical | |
|---|---|
| Model Number | Plug |
| Enclosure Type | Conversion kit |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | Light grey |
| Material Compliance | |
| RoHS Declaration | 2CPC100008X0201 |
| 2CPC100022X0202 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240916;20230921 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Dimensions | |
| Product Net Width | 16.3 mm |
| Product Net Height | 22.3 mm |
| Product Net Depth / Length | 27.8 mm |
| Product Net Weight | 0.01 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.01 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100008X0201 |
| 2CPC100022X0202 | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001121 - Modular connector |
| ETIM 10 | EC001121 - Modular connector |
| eClass | V11.0 : 27440390 |
| Object Classification Code | U |
