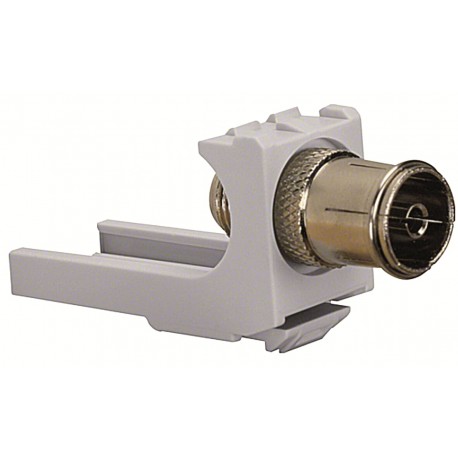

ABB 2CPX039247R9999 2CPX039247R9999 ABB ZE317 COAX Modul IEC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX039247R9999 ABB ZE317 COAX Modul IEC

2CPX039247R9999

2CPX039247R9999

ABB

1 Pcs.

ZE317 COAX Modul IEC Conversion kit ComfortLine accessories, Dimensions: 22.3 mm x 16.3 mm x 27.8 mm

Connectors > Modular connector
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This conversion kit functions as a compact bus jack module to facilitate secure data interface connections inside modular enclosures. Such components are frequently utilized in electrical distribution and automation infrastructure to organize wiring layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Bus (jack)
  • Enclosure Type: Conversion kit
  • RAL Number: RAL 7035 - Light Grey
  • Color: Light grey
  • RoHS Declaration: 2CPC100008X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240916;20230921
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Consumer
  • Product Net Width: 16.3 mm
  • Product Net Height: 22.3 mm
  • Product Net Depth / Length: 27.8 mm

More info

▲
Technical
Model NumberBus (jack)
Enclosure TypeConversion kit
Design
RAL NumberRAL 7035 - Light Grey
ColorLight grey
Material Compliance
RoHS Declaration2CPC100008X0201
2CPC100022X0202
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240916;20230921
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Dimensions
Product Net Width16.3 mm
Product Net Height22.3 mm
Product Net Depth / Length27.8 mm
Product Net Weight0.009 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.009 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100008X0201
2CPC100022X0202
Installation
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
External Classifications and Standards
ETIM 9EC001121 - Modular connector
ETIM 10EC001121 - Modular connector
eClassV11.0 : 27440390
Object Classification CodeU
