View larger
Images are for illustrative purposes only. Please refer to data sheet for details

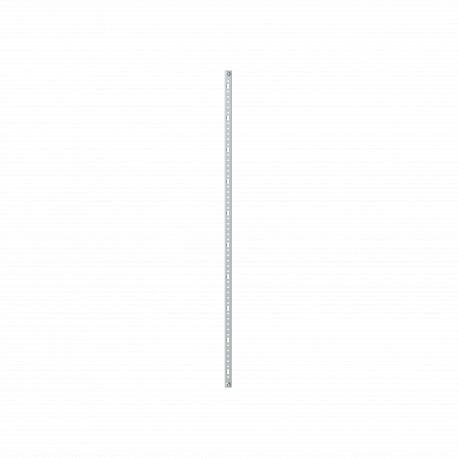

2CPX039211R9999 ABB ED11 EDF 5 row cabinet frame, H 750
2CPX039211R9999
039211
ABB
1 Pcs.
ED11 EDF 5 row cabinet frame, H=750
ED11 EDF-Profile OH1 750 mm
Automation > Profile (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Extended Product Type:
- ED11
- Product ID:
- 2CPX039211R9999
- EAN:
- 4011617392118
- Catalog Description:
- ED11 EDF-Profile OH1 750 mm
- Long Description:
- Vertical EDF profile rail, set not installed, for 5 RE (750 mm), for mounting modules up to 400 A, includes mounting screws. The system component is suitable for the EDF mounting frame.
Ordering
- EAN:
- 4011617392118
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 73269098
Dimensions
- Product Net Width:
- 750mm
- Product Net Height:
- 750mm
- Product Net Length:
- 750 mm
- Product Net Depth / Length:
- 150mm
- Product Net Weight:
- 0.51kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 15.000 mm
- Package Level 1 Height:
- 20.000 mm
- Package Level 1 Depth / Length:
- 750.000 mm
- Package Level 1 Gross Weight:
- 0.53 kg
- Package Level 1 EAN:
- 4011617392118
- Package Level 2 Units:
- pallet (lift) 540 piece
- Package Level 2 Width:
- 830 mm
- Package Level 2 Height:
- 1710 mm
- Package Level 2 Depth / Length:
- 1210 mm
Additional Information
- DIN Place Units:
- 0
- Enclosure Type:
- Interior fitting module
- Enclosure Type of Height:
- 1
- Material:
- Steel
- Meter Boards:
- 0
- Mounting Position:
- vertical
- Mounting Type:
- Screw mounting
- Product Main Type:
- ED
- Product Name:
- ED11 EDF-Profile OH1 750 mm
- Surface Finishing:
- Galvanized
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
- Declaration of Conformity - CE:
- No declaration needed
- Environmental Information:
- 2CPC100001X0201
- Instructions and Manuals:
- 2CPC112313M5601
Classifications
- ETIM 4:
- EC002518 - Profile (switchgear cabinet)
- ETIM 5:
- EC002518 - Profile (switchgear cabinet)
- ETIM 6:
- EC002518 - Profile (switchgear cabinet)
- ETIM 7:
- EC002518 - Profile (switchgear cabinet)
- Object Classification Code:
- U
- WEEE Category:
- Product Not in WEEE Scope
| Feature Name | Feature Value |
|---|---|
| Number of height units (EF003561) | 5 |
| Model (EF000010) | Other |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Other |
| Length (EF001438) | 750 mm |
| Stepless mounting (EF001086) | No |
| Mounting method (EF000003) | Screw mounting |
| Profile height busbar (EF008269) | 20 mm |
