View larger
Images are for illustrative purposes only. Please refer to data sheet for details

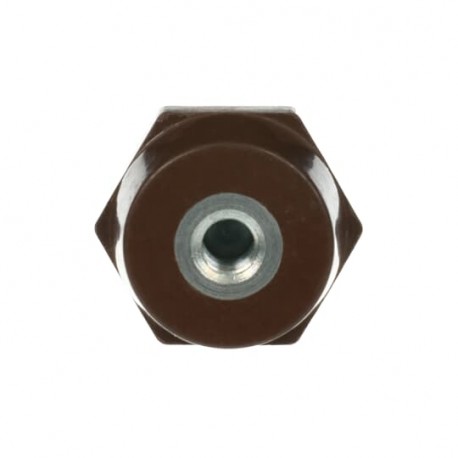

2CPX039052R9999 ABB ZX52 insulator M10 40x40mm
2CPX039052R9999
2CPX039052R9999
ABB
1 Pcs.
ZX52 insulator M10 40x40mm
Busbar holder, 40 mm x 40 mm x 40 mm
Automation > Mounting accessories (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Accessory Type | Other |
| Enclosure Type | Busbar holder |
| DIN Place Units | 0 |
| Meter Boards | 0 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 40 mm |
| Product Net Height | 40 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.12 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.125 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC002625 - Mounting accessories (enclosure/cabinet) |
| ETIM 10 | EC002625 - Mounting accessories (enclosure/cabinet) |
| eClass | V11.0 : 27182807 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Width (EF000008) | 40 mm |
| Height (EF000040) | 40 mm |
| Depth (EF000049) | 40 mm |
