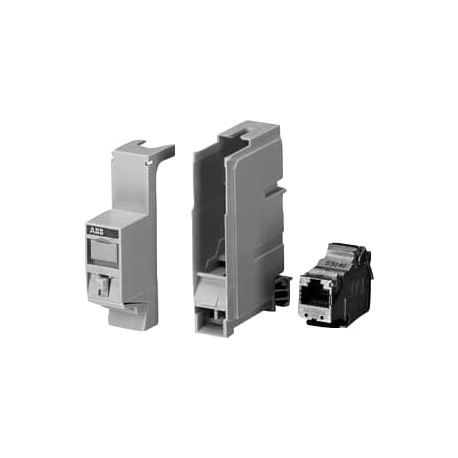

ABB 2CPX038625R9999 2CPX038625R9999 ABB ZE310 Patchmodul RJ45 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX038625R9999 ABB ZE310 Patchmodul RJ45

2CPX038625R9999

2CPX038625R9999

ABB

1 Pcs.

ZE310 Patchmodul RJ45 IP patch module, RJ45 module with adaptor for top hat rail installation.

Connectors > Modular connector
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A modular connector like the 2CPX038625R9999 ABB ZE310 Patchmodul RJ45 from ABB serves as a specialized interface module for integrating communication lines into electrical distribution boards. These units are commonly mounted on standard DIN rails to facilitate organized network connections within industrial control systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: ZE310
  • Product ID: 2CPX038625R9999
  • Catalog Description: ZE310 Measuring devices
  • Long Description: IP patch module, RJ45 module with adaptor for top hat rail installation.
  • Model Number: Bus (jack)
  • Communication Connector Type: RJ45 8(4)
  • Connection Type: Insulation - Displacement
  • Enclosure Type: Measuring devices
  • RAL Number: RAL 7035 - Light Grey
  • Color: Light grey
  • RoHS Information: 2CPC100009X0201 2CPC100014X0201 2CPC100022X0202
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20230918
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contains substances > 0.1 mass percentage
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363

More info

▲
  • Extended Product Type:
    ZE310
  • Product ID:
    2CPX038625R9999
  • EAN:
    4011617386254
  • Catalog Description:
    ZE310 Measuring devices
  • Long Description:
    IP patch module, RJ45 module with adaptor for top hat rail installation.

Technical

  • Model Number:
    Bus (jack)
  • Communication Connector Type:
    RJ45 8(4)
  • Connection Type:
    Insulation - Displacement
  • Enclosure Type:
    Measuring devices
  • RAL Number:
    RAL 7035 - Light Grey
  • Color:
    Light grey

Material Compliance

Dimensions

  • Product Net Width:
    18mm
  • Product Net Height:
    73mm
  • Product Net Depth / Length:
    66.7mm
  • Product Net Weight:
    0.052kg

Ordering

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Gross Weight:
    0.052 kg

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC001121 - Modular connector
  • ETIM 9:
    EC001121 - Modular connector
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85366910
  • eClass:
    V11.0 : 27440390
  • Object Classification Code:
    U

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
