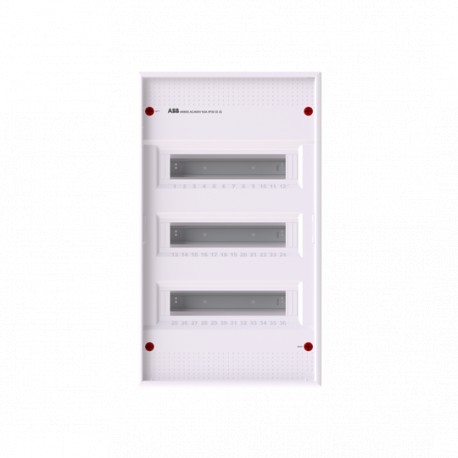

ABB 2CPX032565R9999 2CPX032565R9999 ABB AK636N3 with rap strips. without p. 36M 3F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX032565R9999 ABB AK636N3 with rap strips. without p. 36M 3F

2CPX032565R9999

2CPX032565R9999

ABB

1 Pcs.

AK636N3 with rap strips. without p. 36M 3F Hood-type consumer unit, partly assembled, for the internal use, without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 7, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 750°C, Untreated, in RAL 9016, enclosure out of thermoplast, without door, in RAL 9016, door opening angle 120 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 578 x 339 x 99, Space units 36, Row distance in mm: 125, covers out of Plastic, Quick sealable connection, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with DIN-rail, device support removable

Automation > Small distribution board
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    AK636N3
  • Product ID:
    2CPX032565R9999
  • EAN:
    4011617325659
  • Catalog Description:
    AK636N3 Hood-type consumer unit , 578 mm x 339 mm x 99 mm, Surface mounting, 36 SU, IP30, Without Door
  • Long Description:
    Hood-type consumer unit, partly assembled, for the internal use, without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 7, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 750°C, Untreated, in RAL 9016, enclosure out of thermoplast, without door, in RAL 9016, door opening angle 120 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 578 x 339 x 99, Space units 36, Row distance in mm: 125, covers out of Plastic, Quick sealable connection, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with DIN-rail, device support removable
+
–

Accessories

IdentifierDescriptionTypeQtyUnit Of Measure
2CPX010998R9999
AZB3P10 Enclosure accessoriesAZB3P101piece
2CPX010997R9999
AZB2 Segregation wallAZB21piece
2CPX031151R9999
AZT630 DoorAZT6301piece
2CPX031155R9999
AZT630V DoorAZT630V1piece
2CPX031159R9999
AZT630W Transparant doorAZT630W1piece
2CPX031120R9999
UZG636 Mounting chassisUZG6361piece
2CPX031416R9999
UZM630 Mounting plateUZM6301piece
2CPX031118R9999
UZG612 Mounting chassisUZG6121piece
2CPX031412R9999
UZT3 Enclosure accessoriesUZT31piece
2CPX062385R9999
ZA3P5 Enclosure accessoriesZA3P51piece
2CPX031420R9999
UZED1P10 Interior fitting systemUZED1P101piece
2CPX062745R9999
ZK50BT TerminalsZK50BT1piece
2CPX062750R9999
ZK50B TerminalsZK50B1piece
2CPX062751R9999
ZK51B TerminalsZK51B1piece
2CPX062752R9999
ZK82B TerminalsZK82B1piece
2CPX062753R9999
ZK113B TerminalsZK113B1piece
2CPX062754R9999
ZK144B TerminalsZK144B1piece
2CPX062755R9999
ZK175B TerminalsZK175B1piece
2CPX062756R9999
ZK206B TerminalsZK206B1piece
2CPX062757R9999
ZK51G TerminalsZK51G1piece
2CPX062758R9999
ZK82G TerminalsZK82G1piece
2CPX062759R9999
ZK113G TerminalsZK113G1piece
2CPX062760R9999
ZK144G TerminalsZK144G1piece
2CPX062761R9999
ZK175G TerminalsZK175G1piece
2CPX062762R9999
ZK206G TerminalsZK206G1piece
2CPX062763R9999
ZK10P10 TerminalsZK10P101piece
2CPX063163R9999
ZK237B TerminalsZK237B1piece
2CPX063165R9999
ZK237G TerminalsZK237G1piece
2CPX063164R9999
ZK268B TerminalsZK268B1piece
2CPX063166R9999
ZK268G TerminalsZK268G1piece

Technical

  • Standards:
    DIN 43871
  • Rated Operational Voltage:
    Maximum 400 V
  • Rated Current (In):
    63 A
  • Power Loss:
    Δt = 30K 51 W
  • Number of Rows:
    3
  • Closure Type:
    Push Button
  • Configuration Type:
    Assembled with DIN-rail
  • Cover Plate Type:
    Cover
  • Enclosure Type:
    Hood-type consumer unit
  • Mounting Type:
    Surface mounting
  • Door Type:
    Without Door
  • Surface Finishing:
    Untreated
  • Housing Material:
    Plastic
  • Material:
    Thermoplast
  • Cover Style:
    with Notch
  • DIN Place Units:
    36
  • RAL Number:
    RAL 9016 - Traffic White
  • Color:
    Traffic white

Material Compliance

  • RoHS Information:
    2CPC100009X0201
    2CPC100022X0202
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date:
    20230918
  • REACH Declaration:
    2CPC100005X0201
  • REACH Information:
    False - does not contains substances > 0.1 mass percentage
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Environmental

  • Degree of Protection:
    IP30
  • Protection Class:
    Isolated (Class II)

Dimensions

  • Width in Number of Modular Spacings:
    12
  • Product Net Width:
    339mm
  • Product Net Height:
    578mm
  • Product Net Depth / Length:
    99mm
  • Product Net Weight:
    2.697kg
  • Built-In Depth (t2):
    55 mm
  • Dimension Diagram:
    2CPC000008D0201

Ordering

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Gross Weight:
    2.805 kg

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC000214 - Small distribution board
  • ETIM 9:
    EC000214 - Small distribution board
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85371098
  • eClass:
    V11.0 : 27142409
  • Object Classification Code:
    U
