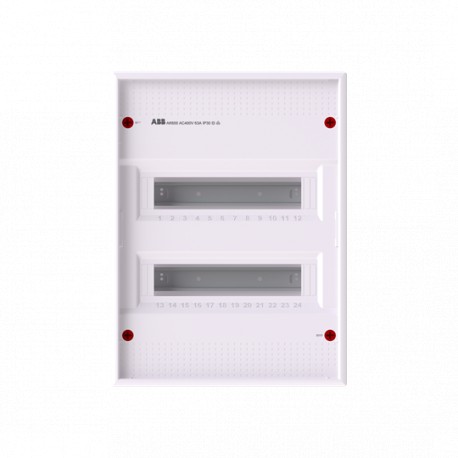

2CPX032564R9999 ABB AK624N3 with rap strips. without p. 24M 2F
2CPX032564R9999
2CPX032564R9999
ABB
1 Pcs.
Automation > Small distribution board
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An AK624N3 with rap strips. without p. 24M 2F, designated as Abb part number 2CPX032564R9999, is an enclosure accessory set used in electrical distribution panels to configure internal mounting spaces and support modular devices effectively.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 2CPX010998R9999: AZB3P10 Enclosure accessories
- 2CPX010997R9999: AZB2 Segregation wall
- 2CPX031150R9999: AZT620 Door
- 2CPX031154R9999: AZT620V Door
- 2CPX031158R9999: AZT620W Transparant door
- 2CPX031119R9999: UZG624 Mounting chassis
- 2CPX031415R9999: UZM620 Mounting plate
- 2CPX031118R9999: UZG612 Mounting chassis
- 2CPX031412R9999: UZT3 Enclosure accessories
- 2CPX062385R9999: ZA3P5 Enclosure accessories
- 2CPX031420R9999: UZED1P10 Interior fitting system
- 2CPX062745R9999: ZK50BT Terminals
- 2CPX062750R9999: ZK50B Terminals
- 2CPX062751R9999: ZK51B Terminals
- 2CPX062752R9999: ZK82B Terminals
- 2CPX062753R9999: ZK113B Terminals
More info
▲- Extended Product Type:
- AK624N3
- Product ID:
- 2CPX032564R9999
- EAN:
- 4011617325642
- Catalog Description:
- AK624N3 Hood-type consumer unit , 453 mm x 339 mm x 99 mm, Surface mounting, 24 SU, IP30, Without Door
- Long Description:
- Hood-type consumer unit, partly assembled, for the internal use, without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 7, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 750°C, Untreated, in RAL 9016, enclosure out of thermoplast, without door, in RAL 9016, door opening angle 120 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 453 x 339 x 99, Space units 24, Row distance in mm: 125, covers out of Plastic, Quick sealable connection, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with DIN-rail, device support removable
Accessories
| Identifier | Description | Type | Qty | Unit Of Measure |
|---|---|---|---|---|
| 2CPX010998R9999 | AZB3P10 Enclosure accessories | AZB3P10 | 1 | piece |
| 2CPX010997R9999 | AZB2 Segregation wall | AZB2 | 1 | piece |
| 2CPX031150R9999 | AZT620 Door | AZT620 | 1 | piece |
| 2CPX031154R9999 | AZT620V Door | AZT620V | 1 | piece |
| 2CPX031158R9999 | AZT620W Transparant door | AZT620W | 1 | piece |
| 2CPX031119R9999 | UZG624 Mounting chassis | UZG624 | 1 | piece |
| 2CPX031415R9999 | UZM620 Mounting plate | UZM620 | 1 | piece |
| 2CPX031118R9999 | UZG612 Mounting chassis | UZG612 | 1 | piece |
| 2CPX031412R9999 | UZT3 Enclosure accessories | UZT3 | 1 | piece |
| 2CPX062385R9999 | ZA3P5 Enclosure accessories | ZA3P5 | 1 | piece |
| 2CPX031420R9999 | UZED1P10 Interior fitting system | UZED1P10 | 1 | piece |
| 2CPX062745R9999 | ZK50BT Terminals | ZK50BT | 1 | piece |
| 2CPX062750R9999 | ZK50B Terminals | ZK50B | 1 | piece |
| 2CPX062751R9999 | ZK51B Terminals | ZK51B | 1 | piece |
| 2CPX062752R9999 | ZK82B Terminals | ZK82B | 1 | piece |
| 2CPX062753R9999 | ZK113B Terminals | ZK113B | 1 | piece |
| 2CPX062754R9999 | ZK144B Terminals | ZK144B | 1 | piece |
| 2CPX062755R9999 | ZK175B Terminals | ZK175B | 1 | piece |
| 2CPX062756R9999 | ZK206B Terminals | ZK206B | 1 | piece |
| 2CPX062757R9999 | ZK51G Terminals | ZK51G | 1 | piece |
| 2CPX062758R9999 | ZK82G Terminals | ZK82G | 1 | piece |
| 2CPX062759R9999 | ZK113G Terminals | ZK113G | 1 | piece |
| 2CPX062760R9999 | ZK144G Terminals | ZK144G | 1 | piece |
| 2CPX062761R9999 | ZK175G Terminals | ZK175G | 1 | piece |
| 2CPX062762R9999 | ZK206G Terminals | ZK206G | 1 | piece |
| 2CPX062763R9999 | ZK10P10 Terminals | ZK10P10 | 1 | piece |
| 2CPX063163R9999 | ZK237B Terminals | ZK237B | 1 | piece |
| 2CPX063165R9999 | ZK237G Terminals | ZK237G | 1 | piece |
| 2CPX063164R9999 | ZK268B Terminals | ZK268B | 1 | piece |
| 2CPX063166R9999 | ZK268G Terminals | ZK268G | 1 | piece |
Technical
- Standards:
- DIN 43871
- Rated Operational Voltage:
- Maximum 400 V
- Rated Current (In):
- 63 A
- Power Loss:
- Δt = 30K 43 W
- Number of Rows:
- 2
- Closure Type:
- Push Button
- Configuration Type:
- Assembled with DIN-rail
- Cover Plate Type:
- Cover
- Enclosure Type:
- Hood-type consumer unit
- Mounting Type:
- Surface mounting
- Door Type:
- Without Door
- Surface Finishing:
- Untreated
- Housing Material:
- Plastic
- Material:
- Thermoplast
- Cover Style:
- with Notch
- DIN Place Units:
- 24
- RAL Number:
- RAL 9016 - Traffic White
- Color:
- Traffic white
Material Compliance
- RoHS Information:
- 2CPC100009X0201
2CPC100022X0202
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date:
- 20230918
- REACH Declaration:
- 2CPC100005X0201
- REACH Information:
- False - does not contains substances > 0.1 mass percentage
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Environmental
- Degree of Protection:
- IP30
- Protection Class:
- Isolated (Class II)
Dimensions
- Width in Number of Modular Spacings:
- 12
- Product Net Width:
- 339mm
- Product Net Height:
- 453mm
- Product Net Depth / Length:
- 99mm
- Product Net Weight:
- 2.093kg
- Built-In Depth (t2):
- 55 mm
- Dimension Diagram:
- 2CPC000008D0201
Ordering
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Gross Weight:
- 2.177 kg
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CPC100009X0201
2CPC100022X0202
Installation
- Instructions and Manuals:
- 2CPC140006M5601
Popular Downloads
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
- Building Information Modeling – BIM:
- 9AKK108468A3369
Classifications
- ETIM 8:
- EC000214 - Small distribution board
- ETIM 9:
- EC000214 - Small distribution board
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85371098
- eClass:
- V11.0 : 27142409
- Object Classification Code:
- U
