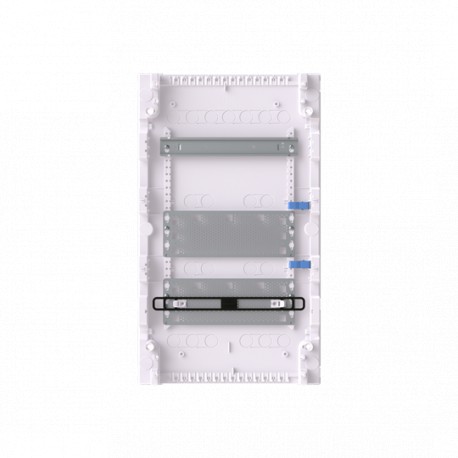

2CPX031815R9999 ABB AK630MB basic 3F multimedia without p.
2CPX031815R9999
2CPX031815R9999
ABB
1 Pcs.
Automation > Small distribution board
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Abb, the part 2CPX031815R9999 ABB AK630MB basic 3F multimedia without p. serves as a foundational component designed for organizing and protecting low-voltage electrical apparatus in commercial or residential buildings. Enclosures of this type safely house modular distribution components, terminal strips, and cabling infrastructure while maintaining required safety clearances.
Please note that current pricing, lead times, and availability for this item are confirmed directly through individual RFQ submissions.
- Number of Rows: 3
- Closure Type: Push Button
- Configuration Type: With Mulit Media board
- Cover Plate Type: Cover
- Enclosure Type: Multimedia unit
- Door Type: Without Door
- Accessories Available: Yes
- DIN Place Units: 36
- Terminal Type: No Terminals
- Rated Operational Voltage: Maximum 400 V
- Power Loss: Δt = 30K 118 W
- Surface Finishing: Untreated
- Housing Material: Plastic
- Material: Thermoplast
- Cover Style: with Notch
- RAL Number: RAL 9016 - Traffic White
More info
▲| Technical | |
|---|---|
| Number of Rows | 3 |
| Closure Type | Push Button |
| Configuration Type | With Mulit Media board |
| Cover Plate Type | Cover |
| Enclosure Type | Multimedia unit |
| Door Type | Without Door |
| Accessories Available | Yes |
| DIN Place Units | 36 |
| Terminal Type | No Terminals |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Power Loss | Δt = 30K 118 W |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | Thermoplast |
| Cover Style | with Notch |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 36 |
| Material Compliance | |
| RoHS Declaration | 2CPC100009X0201 |
| 2CPC100022X0202 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903;20230921 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP00 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 12 |
| Product Net Width | 339 mm |
| Product Net Height | 578 mm |
| Product Net Depth / Length | 99 mm |
| Product Net Weight | 2.323 kg |
| Built-In Depth (t2) | 58 mm |
| Dimension Diagram | 2CPC000004D0201 |
| 2CPC000009D0201 | |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108468A3370 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 2.416 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100009X0201 |
| 2CPC100022X0202 | |
| Installation | |
| Instructions and Manuals | 2CPC140004M5601 |
| Mounting Type | Surface mounting |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142409 |
| Object Classification Code | U |
| Standards | DIN 43871 |
