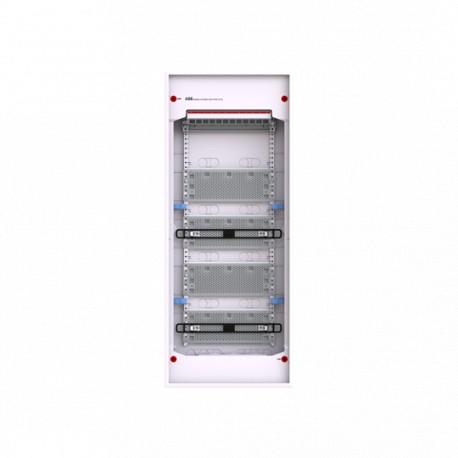

2CPX031813R9999 ABB AK660M multimedia with 5F patch without p.
2CPX031813R9999
2CPX031813R9999
ABB
1 Pcs.
AK660M multimedia with 5F patch without p.
Multimedia unit AK600 Media, Surface mounting, 60 modules, 5 row(s), IP00, Door: Without Door, Dimensions: 828 mm x 339 mm x 99 mm
Automation > Small distribution board
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Rows | 5 |
| Closure Type | Push Button |
| Configuration Type | assembled with perforated sheet steel mounting plate, patchpanel an rotatable tripple socket outlet |
| Cover Plate Type | Cover |
| Enclosure Type | Multimedia unit |
| Door Type | Without Door |
| Accessories Available | Yes |
| DIN Place Units | 60 |
| Terminal Type | No Terminals |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Power Loss | Δt = 30K 149 W |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | Thermoplast |
| Cover Style | with Notch |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 60 |
| Material Compliance | |
| RoHS Declaration | 2CPC100009X0201 |
| 2CPC100022X0202 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903;20230921 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP00 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 12 |
| Product Net Width | 339 mm |
| Product Net Height | 828 mm |
| Product Net Depth / Length | 99 mm |
| Product Net Weight | 3.926 kg |
| Built-In Depth (t2) | 58 mm |
| Dimension Diagram | 2CPC000004D0201 |
| 2CPC000009D0201 | |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108468A3369 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 4.083 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100009X0201 |
| 2CPC100022X0202 | |
| Installation | |
| Instructions and Manuals | 2CPC140004M5601 |
| Mounting Type | Surface mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142409 |
| Object Classification Code | U |
| Standards | DIN 43871 |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Other |
| Number of rows (EF000266) | 5 |
| Width in number of modular spacings (EF002950) | 12 |
| Type of covering (EF000339) | Cover |
| Cover model (EF009212) | With notch |
| Transparent cover/door (EF006244) | No |
| Housing material (EF001596) | Plastic |
| Height (EF000040) | 828 mm |
| Width (EF000008) | 339 mm |
| Depth (EF000049) | 99 mm |
| Built-in depth (EF000218) | 58 mm |
| Built-in height (EF000332) | 781 mm |
| Built-in width (EF000846) | 255 mm |
| Inner depth (EF001131) | 83 mm |
| Earthing terminal block (EF015776) | No |
| Neutral terminal block (EF015777) | No |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | Yes |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | No |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | Other |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Push button |
| Signal passing door (EF015941) | No |
