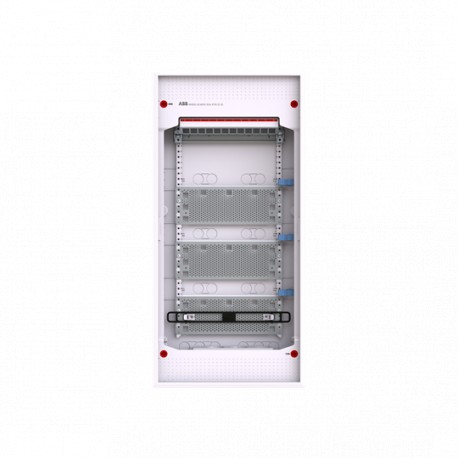

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
2CPX031812R9999 ABB AK648M multimedia with 4F patch without p.
2CPX031812R9999
2CPX031812R9999
ABB
1 Pcs.
AK648M multimedia with 4F patch without p.
Multimedia unit AK600 Media, Surface mounting, 36 modules, 4 row(s), IP00, Door: Without Door, Dimensions: 703 mm x 339 mm x 99 mm
Automation > Small distribution board
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Rows | 4 |
| Closure Type | Push Button |
| Configuration Type | assembled with perforated sheet steel mounting plate, patchpanel an rotatable tripple socket outlet |
| Cover Plate Type | Cover |
| Enclosure Type | Multimedia unit |
| Door Type | Without Door |
| Accessories Available | Yes |
| DIN Place Units | 36 |
| Terminal Type | No Terminals |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Power Loss | Δt = 30K 138 W |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | Thermoplast |
| Cover Style | with Notch |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 36 |
| Material Compliance | |
| RoHS Declaration | 2CPC100009X0201 |
| 2CPC100022X0202 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903;20230921 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP00 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 12 |
| Product Net Width | 339 mm |
| Product Net Height | 703 mm |
| Product Net Depth / Length | 99 mm |
| Product Net Weight | 3.367 kg |
| Built-In Depth (t2) | 58 mm |
| Dimension Diagram | 2CPC000004D0201 |
| 2CPC000009D0201 | |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108468A3369 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 3.502 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100009X0201 |
| 2CPC100022X0202 | |
| Installation | |
| Instructions and Manuals | 2CPC140004M5601 |
| Mounting Type | Surface mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142409 |
| Object Classification Code | U |
| Standards | DIN 43871 |
