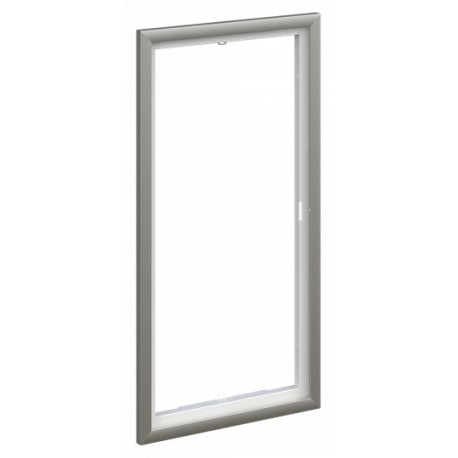

ABB 2CPX031796R9999 2CPX031796R9999 ABB BL640D Brushed Alum Frame,for UK64... View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX031796R9999 ABB BL640D Brushed Alum Frame,for UK64...

2CPX031796R9999

031796

ABB

1 Pcs.

BL640D Brushed Alum Frame,for UK64... Multi design frame suitable for UK600 design inserts, fits UK64.. Sheet metal trim frame pouder coated color RAL9016 with hinge system to install the brushed aluminium design frame color stainless steel, closure with magnet mechanism, frame ready to install the UK600 design inserts

Automation > Door/operating panel (switchgear cabinet)
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
BL640D
Product ID:
2CPX031796R9999
EAN:
4011617317968
Catalog Description:
BL640D     Design frame  4R
Long Description:
Multi design frame suitable for UK600 design inserts, fits UK64.. Sheet metal trim frame pouder coated color RAL9016 with hinge system to install the brushed aluminium design frame color stainless steel, closure with magnet mechanism, frame ready to install the UK600 design inserts
\n

Ordering

E-Number (Sweden):
2201206
EAN:
4011617317968
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
391 mm
Product Net Height:
757 mm
Product Net Depth / Length:
48 mm
Product Net Weight:
2.958 kg

Container Information

Package Level 1 Units:
pack 1 piece
Package Level 1 Width:
440.000 mm
Package Level 1 Height:
85.000 mm
Package Level 1 Depth / Length:
830.000 mm
Package Level 1 Gross Weight:
3.076 kg
Package Level 1 EAN:
4011617317968

Additional Information

Accessory Type:
design frame
Color:
Aluminium
Degree of Protection:
IP30
DIN Place Units:
48
Field Width:
1
Material:
Aluminium
Number of Rows:
4
Product Main Type:
BL
Product Name:
BL640D     Design frame  4R

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\nNo declaration needed
Instructions and Manuals:\n2CPC130112M5601
2CPC130113M5601

Classifications

ETIM 5:
EC000747 - Door/operating panel (switchgear cabinet)
ETIM 6:
EC000747 - Door/operating panel (switchgear cabinet)
ETIM 7:
EC000747 - Door/operating panel (switchgear cabinet)
Object Classification Code:
U
WEEE Category:
Product Not in WEEE Scope
\n
'

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
