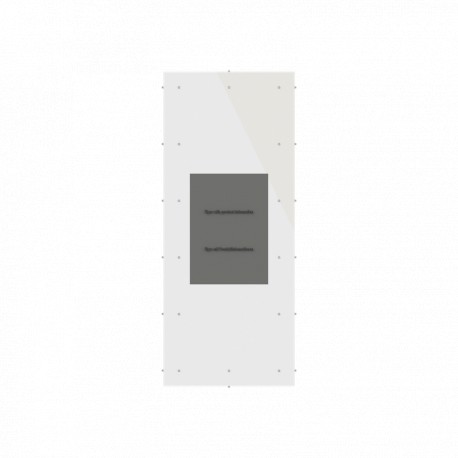

2CPX031780R9999 ABB UZD650 Background Picture Frame,UK600 5 Rows
2CPX031780R9999
031780
ABB
1 Pcs.
Automation > Door/operating panel (switchgear cabinet)
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
2CPX031780R9999 ABB UZD650 Background Picture Frame,UK600 5 Rows operates as an enclosure accessory frame designed for modular distribution boards and multimedia housing units. Trim frames and background inserts give wall-mounted electrical panels a clean, flush-mounted architectural finish. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Clamp Positions: 0
- Number of Rows: 5
- Accessory Type: design insert
- Enclosure Type: Enclosure accessories
- Door Type: Without Door
- Accessories Available: No
- DIN Place Units: 60
- Rated Operational Voltage: Maximum 400 V
- Number of Modules: 60
- RoHS Declaration: 2CPC100018X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20240903
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240902
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
More info
▲| Technical | |
|---|---|
| Model Number | Other |
| Number of Clamp Positions | 0 |
| Number of Rows | 5 |
| Accessory Type | design insert |
| Enclosure Type | Enclosure accessories |
| Door Type | Without Door |
| Accessories Available | No |
| DIN Place Units | 60 |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Design | |
| Surface Finishing | Other |
| Number of Modules | 60 |
| Material Compliance | |
| RoHS Declaration | 2CPC100018X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP30 |
| Dimensions | |
| Width in Number of Modular Spacings | 12 |
| Product Net Width | 469 mm |
| Product Net Height | 844 mm |
| Product Net Depth / Length | 6 mm |
| Product Net Weight | 3.94 kg |
| Dimension Diagram | 2CPC000006D0201 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 4.098 kg |
| E-Number (Sweden) | 2201288 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100018X0201 |
| Installation | |
| Instructions and Manuals | 2CPC130112M5601 |
| Mounting Type | Angle profile |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
