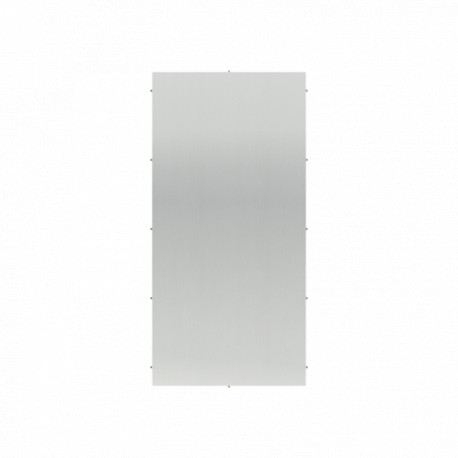

2CPX031778R9999 ABB UZD644 LED Panel Background, UK600 4 Rows
2CPX031778R9999
031778
ABB
1 Pcs.
UZD644 LED Panel Background, UK600 4 Rows
Enclosure accessories UK600 accessories, Angle profile, 48 modules, 4 row(s), IP30, Door: Without Door, Dimensions: 719 mm x 469 mm x 12 mm
Automation > Door/operating panel (switchgear cabinet)
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An enclosure design insert acts as a structural and visual accessory within modular distribution boards, organizing internal space and panel layouts. It supports clean layouts for electrical installations in commercial buildings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Clamp Positions: 0
- Number of Rows: 4
- Accessory Type: design insert
- Enclosure Type: Enclosure accessories
- Door Type: Without Door
- Accessories Available: No
- DIN Place Units: 48
- Rated Operational Voltage: Maximum 400 V
- Number of Modules: 48
- RoHS Declaration: 2CPC100018X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20240903
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240902
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
More info
▲| Technical | |
|---|---|
| Model Number | Other |
| Number of Clamp Positions | 0 |
| Number of Rows | 4 |
| Accessory Type | design insert |
| Enclosure Type | Enclosure accessories |
| Door Type | Without Door |
| Accessories Available | No |
| DIN Place Units | 48 |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Design | |
| Surface Finishing | Other |
| Number of Modules | 48 |
| Material Compliance | |
| RoHS Declaration | 2CPC100018X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP30 |
| Dimensions | |
| Width in Number of Modular Spacings | 12 |
| Product Net Width | 469 mm |
| Product Net Height | 719 mm |
| Product Net Depth / Length | 12 mm |
| Product Net Weight | 2.982 kg |
| Dimension Diagram | 2CPC000006D0201 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 3.101 kg |
| E-Number (Sweden) | 2201252 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100018X0201 |
| Installation | |
| Instructions and Manuals | 2CPC130112M5601 |
| Mounting Type | Angle profile |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
