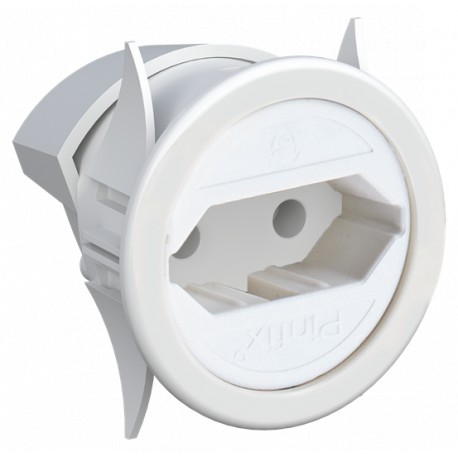

ABB 2CPX031427R9999 2CPX031427R9999 ABB ZE224 Single socket type EURO, UK600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX031427R9999 ABB ZE224 Single socket type EURO, UK600

2CPX031427R9999

2CPX031427R9999

ABB

1 Pcs.

ZE224 Single socket type EURO, UK600 Customized electrical components Accessories Media, Dimensions: 54 mm x 50 mm x 58 mm

Automation > Mounting accessories (switchgear cabinet)
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB single socket outlet provides a reliable local power connection point inside UK600 electrical enclosures and customized distribution boards. Maintenance personnel and technicians use these integrated sockets to power diagnostic tools and auxiliary equipment on-site. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Socket outlet with protective contact
  • Accessory Type: socket outlet
  • Enclosure Type: Customized electrical components
  • Accessories Available: No
  • RoHS Declaration: 2CPC100012X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240903
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Consumer
  • Product Net Width: 50 mm
  • Product Net Height: 54 mm
  • Product Net Depth / Length: 58 mm

More info

▲
Technical
Model NumberSocket outlet with protective contact
Accessory Typesocket outlet
Enclosure TypeCustomized electrical components
Accessories AvailableNo
Material Compliance
RoHS Declaration2CPC100012X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Dimensions
Product Net Width50 mm
Product Net Height54 mm
Product Net Depth / Length58 mm
Product Net Weight0.065 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.068 kg
E-Number (Sweden)2201209
Certificates and Declarations
Declaration of Conformity - CE2CPC100012X0201
Installation
Instructions and Manuals2CPC130110M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 10EC002625 - Mounting accessories (enclosure/cabinet)
eClassV11.0 : 27182807
Object Classification CodeU
