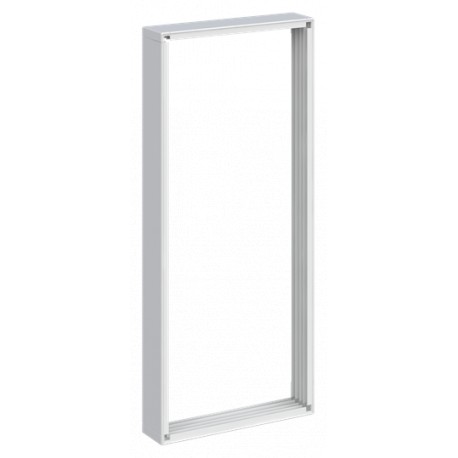

ABB 2CPX031406R9999 2CPX031406R9999 ABB AP660 Surface mounting kit UK600,5rows View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX031406R9999 ABB AP660 Surface mounting kit UK600,5rows

2CPX031406R9999

031406

ABB

1 Pcs.

AP660 Surface mounting kit UK600,5rows Assembly set suitable for UK66.., for surface-mounted and partially-recessed installation, with defined breaking points, only suitable for standard doors; with the assembly set, changing the mounting from flush to surface or partially recessed is possible using an extension frame.

Automation > Mounting accessories (switchgear cabinet)
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB surface mounting kit serves as a dedicated hardware set for installing electrical enclosures onto solid walls where recessed placement is not feasible. Contractors utilize these adaptation frames to convert flush-mounted distribution boards into secure surface-mounted units. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Abb
  • Manufacturer part number: 2CPX031406R9999
  • Catalogue code: 031406
  • Catalogue title: 2CPX031406R9999 ABB AP660 Surface mounting kit UK600,5rows
  • Product description: b' General Information Extended Product Type: AP660 Product ID: 2CPX031406R9999 EAN: 4011617314066 Catalog Description: AP660 wall mounting set UK 5R Long Description: Assembly set suitable for UK66.., for surface-mounte
  • Manufacturer summary: AP660 Surface mounting kit UK600,5rows Assembly set suitable for UK66.., for surface-mounted and partially-recessed installation, with defined breaking points, only suitable for standard doors; with the assembly set, cha

More info

▲

b'

General Information

Extended Product Type:
AP660
Product ID:
2CPX031406R9999
EAN:
4011617314066
Catalog Description:
AP660      wall mounting set UK 5R
Long Description:
Assembly set suitable for UK66.., for surface-mounted and partially-recessed installation, with defined breaking points, only suitable for standard doors; with the assembly set, changing the mounting from flush to surface or partially recessed is possible using an extension frame.
\n

Ordering

E-Number (Sweden):
2201224
EAN:
4011617314066
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
384 mm
Product Net Height:
872 mm
Product Net Depth / Length:
90 mm
Product Net Weight:
1.152 kg

Container Information

Package Level 1 Units:
pack 1 piece
Package Level 1 Width:
390.000 mm
Package Level 1 Height:
60.000 mm
Package Level 1 Depth / Length:
890.000 mm
Package Level 1 Gross Weight:
1.198 kg
Package Level 1 EAN:
4011617314066

Additional Information

Accessory Type:
wall mounting set
DIN Place Units:
60
Material:
Plastic
Number of Rows:
5
Product Main Type:
UZ
Product Name:
AP660      wall mounting set UK 5R

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\nNo declaration needed
Instructions and Manuals:\n2CPC130103M5601

Classifications

ETIM 5:
EC002625 - Mounting accessories (switchgear cabinet)
ETIM 6:
EC002625 - Mounting accessories (switchgear cabinet)
ETIM 7:
EC002625 - Mounting accessories (switchgear cabinet)
Object Classification Code:
U
WEEE Category:
Product Not in WEEE Scope
\n
'

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
