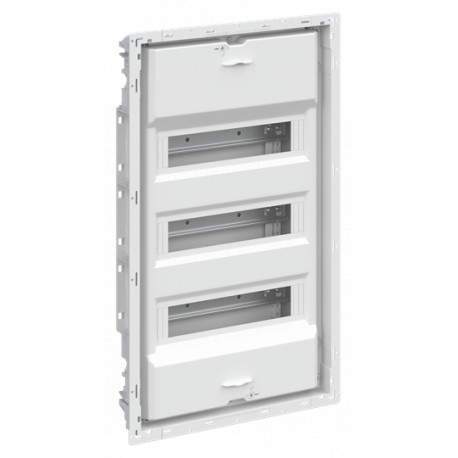

2CPX031376R9999 ABB UK636NB Basic IP30 recessed arm, 36 mode.
2CPX031376R9999
031376
ABB
1 Pcs.
Automation > Small distribution board
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb UK636NB Basic IP30 recessed arm, 36 mode. consumer unit organizes and protects modular DIN-rail distribution apparatus within wall-mounted building installations. Such enclosures provide a clean, secure enclosure for circuit protection devices in commercial and residential electrical grids.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: UK636NB
- Product ID: 2CPX031376R9999
- Catalog Description: UK636NB con. unit fl 36M IP30 base
- E-Number (Sweden): 2201241
- Color: Traffic white
- Configuration Type: assembled with device carrier
- Cover Plate Type: Optional
- Degree of Protection: IP30
- DIN Place Units: 36
- Enclosure Type: Consumer unit
- Housing Material: Plastic
- Interior Depth: 75 mm
- Mounting Type: Flush-mounted
- Niche Depth: 95 mm
- Niche Height: 605 mm
- Niche Width: 367 mm
More info
▲- Extended Product Type:
- UK636NB
- Product ID:
- 2CPX031376R9999
- EAN:
- 4011617313762
- Catalog Description:
- UK636NB con. unit fl 36M IP30 base
- Long Description:
- Consumer unit, series UK600, for the internal use, without closed cover without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, in RAL 9016, enclosure out of thermoplast, without cover and without door, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 597 x 362 x 97, 3-rows, Space units 36, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE Quick-terminal, cable fastening rail integrated, assembled with device carrier, device support removable
Ordering
- E-Number (Sweden):
- 2201241
- EAN:
- 4011617313762
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85371098
Dimensions
- Product Net Width:
- 362mm
- Product Net Height:
- 597mm
- Product Net Depth / Length:
- 97mm
- Product Net Weight:
- 2.615kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 390.000 mm
- Package Level 1 Height:
- 630.000 mm
- Package Level 1 Depth / Length:
- 115.000 mm
- Package Level 1 Gross Weight:
- 2.72 kg
- Package Level 1 EAN:
- 4011617313762
- Package Level 2 Units:
- pallet (lift) 45 piece
- Package Level 2 Width:
- 800.000 mm
- Package Level 2 Height:
- 1820.000 mm
- Package Level 2 Depth / Length:
- 1200.000 mm
- Package Level 2 Gross Weight:
- 137.675 kg
Additional Information
- Color:
- Traffic white
- Configuration Type:
- assembled with device carrier
- Cover Plate Type:
- Optional
- Degree of Protection:
- IP30
- DIN Place Units:
- 36
- Enclosure Type:
- Consumer unit
- Housing Material:
- Plastic
- Interior Depth:
- 75 mm
- Mounting Type:
- Flush-mounted
- Niche Depth:
- 95 mm
- Niche Height:
- 605 mm
- Niche Width:
- 367 mm
- Number of Rows:
- 3
- Power Loss:
- Δt = 30K 54 W
- Product Main Type:
- UK
- Product Name:
- UK636NB con. unit fl 36M IP30 base
- Protection Class:
- Isolated
- Rated Operational Voltage:
- Maximum 400 V
- Terminal Type:
- Quick-Terminal
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000031C0101
2CPC000187C0101
2CPC000188C0101
- Declaration of Conformity - CE:
- No declaration needed
- Instructions and Manuals:
- 2CPC129380M5601
Classifications
- ETIM 5:
- EC000214 - Small distribution board
- ETIM 6:
- EC000214 - Small distribution board
- ETIM 7:
- EC000214 - Small distribution board
- Object Classification Code:
- U
- WEEE Category:
- 4. Large Equipment (Any External Dimension More Than 50 cm)
