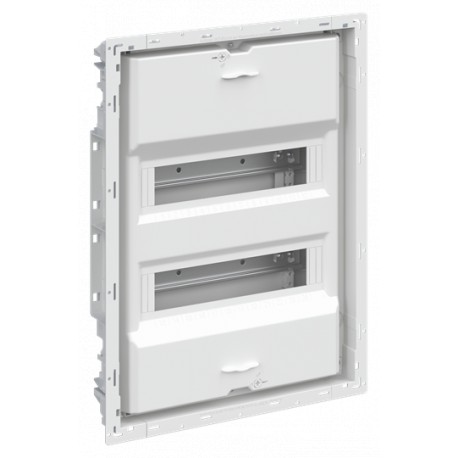

ABB 2CPX031375R9999 2CPX031375R9999 ABB UK624NB Basic IP30 recessed arm, 24 mode. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX031375R9999 ABB UK624NB Basic IP30 recessed arm, 24 mode.

2CPX031375R9999

031375

ABB

1 Pcs.

UK624NB Basic IP30 recessed arm, 24 mode. UK624NB con. unit fl 24M IP30 base

Automation > Small distribution board
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    UK624NB
  • Product ID:
    2CPX031375R9999
  • EAN:
    4011617313755
  • Catalog Description:
    UK624NB con. unit fl 24M IP30 base
  • Long Description:
    Consumer unit, series UK600, for the internal use, without closed cover without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, in RAL 9016, enclosure out of thermoplast, without cover and without door, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 472 x 362 x 97, 2-rows, Space units 24, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE Quick-terminal, cable fastening rail integrated, assembled with device carrier, device support removable

Ordering

  • E-Number (Sweden):
    2201239
  • EAN:
    4011617313755
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000

Dimensions

  • Product Net Width:
    362mm
  • Product Net Height:
    472mm
  • Product Net Depth / Length:
    97mm
  • Product Net Weight:
    2.048kg

Container Information

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Width:
    390.000 mm
  • Package Level 1 Height:
    506.000 mm
  • Package Level 1 Depth / Length:
    115.000 mm
  • Package Level 1 Gross Weight:
    2.13 kg
  • Package Level 1 EAN:
    4011617313755
  • Package Level 2 Units:
    pallet (lift) 60 piece
  • Package Level 2 Width:
    800.000 mm
  • Package Level 2 Height:
    1820.000 mm
  • Package Level 2 Depth / Length:
    1200.000 mm
  • Package Level 2 Gross Weight:
    142.88 kg

Additional Information

  • Color:
    Traffic white
  • Configuration Type:
    assembled with device carrier
  • Cover Plate Type:
    Optional
  • Degree of Protection:
    IP30
  • DIN Place Units:
    24
  • Enclosure Type:
    Consumer unit
  • Housing Material:
    Plastic
  • Interior Depth:
    75 mm
  • Mounting Type:
    Flush-mounted
  • Niche Depth:
    95 mm
  • Niche Height:
    480 mm
  • Niche Width:
    367 mm
  • Number of Rows:
    2
  • Power Loss:
    Δt = 30K 45 W
  • Product Main Type:
    UK
  • Product Name:
    UK624NB con. unit fl 24M IP30 base
  • Protection Class:
    Isolated
  • Rated Operational Voltage:
    Maximum 400 V
  • Terminal Type:
    Quick-Terminal

Certificates and Declarations (Document Number)

Classifications

  • ETIM 5:
    EC000214 - Small distribution board
  • ETIM 6:
    EC000214 - Small distribution board
  • ETIM 7:
    EC000214 - Small distribution board
  • Object Classification Code:
    U
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
