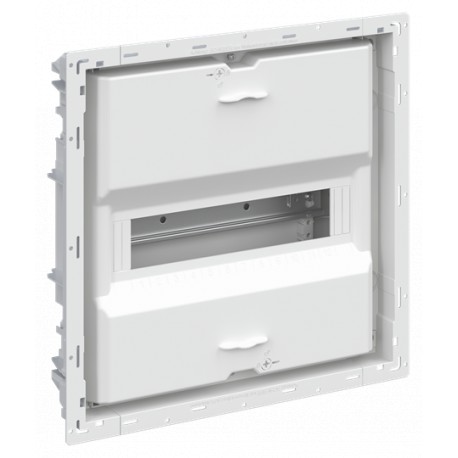

2CPX031374R9999 ABB UK612NB Basic IP30 recessed arm, 12 mode.
2CPX031374R9999
031374
ABB
1 Pcs.
Automation > Small distribution board
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Wall-recessed installations of circuit breakers and modular controls are streamlined through the use of this Abb 2CPX031374R9999 consumer unit base. Flush-mounted enclosures of this type provide a secure, organized foundation for electrical distribution systems inside building walls. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: UK612NB
- Product ID: 2CPX031374R9999
- Catalog Description: UK612NB con. unit fl 12M IP30 base
- E-Number (Sweden): 2201237
- Color: Traffic white
- Configuration Type: assembled with device carrier
- Cover Plate Type: Optional
- Degree of Protection: IP30
- DIN Place Units: 12
- Enclosure Type: Consumer unit
- Housing Material: Plastic
- Interior Depth: 75 mm
- Mounting Type: Flush-mounted
- Niche Depth: 95 mm
- Niche Height: 355 mm
- Niche Width: 367 mm
More info
▲- Extended Product Type:
- UK612NB
- Product ID:
- 2CPX031374R9999
- EAN:
- 4011617313748
- Catalog Description:
- UK612NB con. unit fl 12M IP30 base
- Long Description:
- Consumer unit, series UK600, for the internal use, without closed cover without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, in RAL 9016, enclosure out of thermoplast, without cover and without door, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 347 x 362 x 97, 1-rows, Space units 12, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE Quick-terminal, cable fastening rail integrated, assembled with device carrier, device support removable
Ordering
- E-Number (Sweden):
- 2201237
- EAN:
- 4011617313748
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85381000
Dimensions
- Product Net Width:
- 362mm
- Product Net Height:
- 347mm
- Product Net Depth / Length:
- 97mm
- Product Net Weight:
- 1.481kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 390.000 mm
- Package Level 1 Height:
- 380.000 mm
- Package Level 1 Depth / Length:
- 115.000 mm
- Package Level 1 Gross Weight:
- 1.54 kg
- Package Level 1 EAN:
- 4011617313748
- Package Level 2 Units:
- pallet (lift) 90 piece
- Package Level 2 Width:
- 800.000 mm
- Package Level 2 Height:
- 1820.000 mm
- Package Level 2 Depth / Length:
- 1200.000 mm
- Package Level 2 Gross Weight:
- 153.29 kg
Additional Information
- Color:
- Traffic white
- Configuration Type:
- assembled with device carrier
- Cover Plate Type:
- Optional
- Degree of Protection:
- IP30
- DIN Place Units:
- 12
- Enclosure Type:
- Consumer unit
- Housing Material:
- Plastic
- Interior Depth:
- 75 mm
- Mounting Type:
- Flush-mounted
- Niche Depth:
- 95 mm
- Niche Height:
- 355 mm
- Niche Width:
- 367 mm
- Number of Rows:
- 1
- Power Loss:
- Δt = 30K 31 W
- Product Main Type:
- UK
- Product Name:
- UK612NB con. unit fl 12M IP30 base
- Protection Class:
- Isolated
- Rated Operational Voltage:
- Maximum 400 V
- Terminal Type:
- Quick-Terminal
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000031C0101
2CPC000187C0101
2CPC000188C0101
- Declaration of Conformity - CE:
- No declaration needed
- Instructions and Manuals:
- 2CPC129380M5601
Classifications
- ETIM 5:
- EC000214 - Small distribution board
- ETIM 6:
- EC000214 - Small distribution board
- ETIM 7:
- EC000214 - Small distribution board
- Object Classification Code:
- U
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
