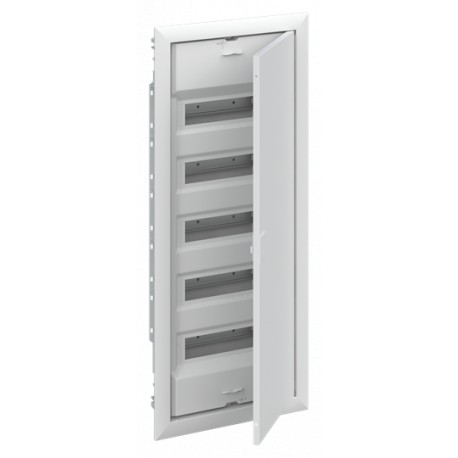

ABB 2CPX031373R9999 2CPX031373R9999 ABB UK660N4 Arm.emp.IP30,60 mód.puer.metal. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX031373R9999 ABB UK660N4 Arm.emp.IP30,60 mód.puer.metal.

2CPX031373R9999

031373

ABB

1 Pcs.

UK660N4 Arm.emp.IP30,60 mód.puer.metal. UK660N4 con. unit fl 60M IP30 w. door

Automation > Small distribution board
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a robust recessed enclosure, the Abb 2CPX031373R9999 ABB UK660N4 Arm.emp.IP30,60 mód.puer.metal. functions as a specialized consumer unit designed to consolidate extensive modular control and safety devices. Panel enclosures of this sort support structured cable management and protect sensitive electrical components within institutional facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: UK660N4
  • Product ID: 2CPX031373R9999
  • Catalog Description: UK660N4 con. unit fl 60M IP30 w. door
  • E-Number (Sweden): 2201244
  • Color: Traffic white
  • Configuration Type: assembled with device carrier
  • Cover Plate Type: Door
  • Degree of Protection: IP30
  • DIN Place Units: 60
  • Enclosure Type: Consumer unit
  • Housing Material: Plastic
  • Interior Depth: 75 mm
  • Mounting Type: Flush-mounted
  • Niche Depth: 95 mm
  • Niche Height: 855 mm
  • Niche Width: 367 mm

More info

▲
  • Extended Product Type:
    UK660N4
  • Product ID:
    2CPX031373R9999
  • EAN:
    4011617313731
  • Catalog Description:
    UK660N4 con. unit fl 60M IP30 w. door
  • Long Description:
    Consumer unit, series UK600, for the internal use, with closed doorframe and door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, powder-coated, in RAL 9016, enclosure out of thermoplast, with trim frame and metal door, door out of sheet steel, in RAL 9016, with TIP-in closure, door opening angle 120 degree, door hinge right or left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 872 x 384 x 97, Shutter frame dimensions in mm (H x W x D): 872 x 384 x 9, 5-rows, Space units 60, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE Quick-terminal, cable fastening rail integrated, assembled with device carrier, device support removable

Ordering

  • E-Number (Sweden):
    2201244
  • EAN:
    4011617313731
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000

Dimensions

  • Product Net Width:
    384mm
  • Product Net Height:
    872mm
  • Product Net Depth / Length:
    97mm
  • Product Net Weight:
    5.869kg

Container Information

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Width:
    390.000 mm
  • Package Level 1 Height:
    880.000 mm
  • Package Level 1 Depth / Length:
    115.000 mm
  • Package Level 1 Gross Weight:
    6.104 kg
  • Package Level 1 EAN:
    4011617313731
  • Package Level 2 Units:
    pallet (lift) 30 piece
  • Package Level 2 Width:
    800.000 mm
  • Package Level 2 Height:
    1820.000 mm
  • Package Level 2 Depth / Length:
    1200.000 mm
  • Package Level 2 Gross Weight:
    196.07 kg

Additional Information

  • Color:
    Traffic white
  • Configuration Type:
    assembled with device carrier
  • Cover Plate Type:
    Door
  • Degree of Protection:
    IP30
  • DIN Place Units:
    60
  • Enclosure Type:
    Consumer unit
  • Housing Material:
    Plastic
  • Interior Depth:
    75 mm
  • Mounting Type:
    Flush-mounted
  • Niche Depth:
    95 mm
  • Niche Height:
    855 mm
  • Niche Width:
    367 mm
  • Number of Rows:
    5
  • Power Loss:
    Δt = 30K 69 W
  • Product Main Type:
    UK
  • Product Name:
    UK660N4 con. unit fl 60M IP30 w. door
  • Protection Class:
    Isolated
  • Rated Operational Voltage:
    Maximum 400 V
  • Terminal Type:
    Quick-Terminal

Certificates and Declarations (Document Number)

Classifications

  • ETIM 5:
    EC000214 - Small distribution board
  • ETIM 6:
    EC000214 - Small distribution board
  • ETIM 7:
    EC000214 - Small distribution board
  • Object Classification Code:
    U
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)
