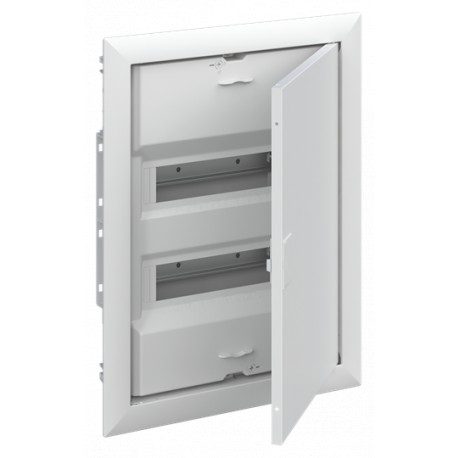

ABB 2CPX031370R9999 2CPX031370R9999 ABB UK624N3 Arm.emp.IP30,24 mód.puer.metal. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX031370R9999 ABB UK624N3 Arm.emp.IP30,24 mód.puer.metal.

2CPX031370R9999

031370

ABB

1 Pcs.

UK624N3 Arm.emp.IP30,24 mód.puer.metal. UK624N3 con. unit fl 24M IP30 w. door

Automation > Small distribution board
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Encapsulated within a durable housing, the Abb 2CPX031370R9999 ABB UK624N3 Arm.emp.IP30,24 mód.puer.metal. functions as a modular consumer unit used to centralize circuit breakers and terminal blocks in building electrical systems. Enclosures like this protect sensitive automation devices from environmental interference while maintaining accessible system wiring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: UK624N3
  • Product ID: 2CPX031370R9999
  • Catalog Description: UK624N3 con. unit fl 24M IP30 w. door
  • E-Number (Sweden): 2201238
  • Color: Traffic white
  • Configuration Type: assembled with device carrier
  • Cover Plate Type: Door
  • Degree of Protection: IP30
  • DIN Place Units: 24
  • Enclosure Type: Consumer unit
  • Housing Material: Plastic
  • Interior Depth: 75 mm
  • Mounting Type: Flush-mounted
  • Niche Depth: 95 mm
  • Niche Height: 480 mm
  • Niche Width: 367 mm

More info

▲
  • Extended Product Type:
    UK624N3
  • Product ID:
    2CPX031370R9999
  • EAN:
    4011617313700
  • Catalog Description:
    UK624N3 con. unit fl 24M IP30 w. door
  • Long Description:
    Consumer unit, series UK600, for the internal use, with closed doorframe and door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, powder-coated, in RAL 9016, enclosure out of thermoplast, with trim frame and metal door, door out of sheet steel, in RAL 9016, with TIP-in closure, door opening angle 120 degree, door hinge right or left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 497 x 384 x 97, Shutter frame dimensions in mm (H x W x D): 497 x 384 x 9, 2-rows, Space units 24, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE Quick-terminal, cable fastening rail integrated, assembled with device carrier, device support removable

Ordering

  • E-Number (Sweden):
    2201238
  • EAN:
    4011617313700
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000

Dimensions

  • Product Net Width:
    384mm
  • Product Net Height:
    497mm
  • Product Net Depth / Length:
    97mm
  • Product Net Weight:
    3.346kg

Container Information

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Width:
    390.000 mm
  • Package Level 1 Height:
    506.000 mm
  • Package Level 1 Depth / Length:
    115.000 mm
  • Package Level 1 Gross Weight:
    3.48 kg
  • Package Level 1 EAN:
    4011617313700
  • Package Level 2 Units:
    pallet (lift) 60 piece
  • Package Level 2 Width:
    800.000 mm
  • Package Level 2 Height:
    1820.000 mm
  • Package Level 2 Depth / Length:
    1200.000 mm
  • Package Level 2 Gross Weight:
    220.76 kg

Additional Information

  • Color:
    Traffic white
  • Configuration Type:
    assembled with device carrier
  • Cover Plate Type:
    Door
  • Degree of Protection:
    IP30
  • DIN Place Units:
    24
  • Enclosure Type:
    Consumer unit
  • Housing Material:
    Plastic
  • Interior Depth:
    75 mm
  • Mounting Type:
    Flush-mounted
  • Niche Depth:
    95 mm
  • Niche Height:
    480 mm
  • Niche Width:
    367 mm
  • Number of Rows:
    2
  • Power Loss:
    Δt = 30K 45 W
  • Product Main Type:
    UK
  • Product Name:
    UK624N3 con. unit fl 24M IP30 w. door
  • Protection Class:
    Isolated
  • Rated Operational Voltage:
    Maximum 400 V
  • Terminal Type:
    Quick-Terminal

Certificates and Declarations (Document Number)

Classifications

  • ETIM 5:
    EC000214 - Small distribution board
  • ETIM 6:
    EC000214 - Small distribution board
  • ETIM 7:
    EC000214 - Small distribution board
  • Object Classification Code:
    U
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
