> ABB > Residential boxes > 2CPX031159R9999

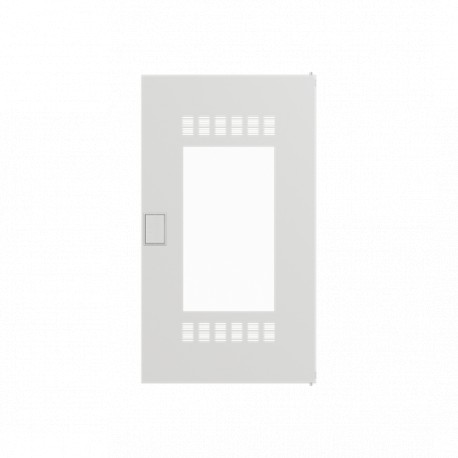

ABB 2CPX031159R9999 2CPX031159R9999 ABB AZT630W AK600 Door 3F Wifi View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX031159R9999 ABB AZT630W AK600 Door 3F Wifi

2CPX031159R9999

2CPX031159R9999

ABB

1 Pcs.

AZT630W AK600 Door 3F Wifi Transparant door, door, class of protection II (double insulated), degree of protection IP20, applicable standards: EN 60670-24, Powder-coated, in RAL 9016, ventilated metal door wifi, door out of sheet steel, in RAL 9016, door opening angle 125 degree, dimensions in mm (H x W x D): 550 x 311 x 13, panel width 1, Space units 36

Automation > Door/operating panel (switchgear cabinet)
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    AZT630W
  • Product ID:
    2CPX031159R9999
  • EAN:
    4011617311591
  • Catalog Description:
    AZT630W Transparant door
  • Long Description:
    Transparant door, door, class of protection II (double insulated), degree of protection IP20, applicable standards: EN 60670-24, Powder-coated, in RAL 9016, ventilated metal door wifi, door out of sheet steel, in RAL 9016, door opening angle 125 degree, dimensions in mm (H x W x D): 550 x 311 x 13, panel width 1, Space units 36
+
–

Accessories

IdentifierDescriptionTypeQtyUnit Of Measure
2CPX031412R9999
UZT3 Enclosure accessoriesUZT31piece

Technical

  • Model Number:
    Protective door
  • Accessory Type:
    Accessories Door
  • Enclosure Type:
    Transparant door
  • Door Type:
    Single
  • Surface Finishing:
    Powder-coated
  • Material:
    Sheet steel / Plastic
  • DIN Place Units:
    36
  • Color:
    Traffic white

Material Compliance

  • RoHS Information:
    2CPC100009X0201
    2CPC100022X0202
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date:
    20230918
  • REACH Declaration:
    2CPC100005X0201
  • REACH Information:
    False - does not contains substances > 0.1 mass percentage
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Environmental

  • Degree of Protection:
    IP20
  • Protection Class:
    Isolated (Class II)

Dimensions

  • Product Net Width:
    311mm
  • Product Net Height:
    550mm
  • Product Net Depth / Length:
    13mm
  • Product Net Weight:
    1.667kg
  • Dimension Diagram:
    2CPC000010D0201

Ordering

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Gross Weight:
    1.734 kg

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC000747 - Door/operating panel (enclosure/cabinet)
  • ETIM 9:
    EC000747 - Door/operating panel (enclosure/cabinet)
  • WEEE Category:
    Product Not in WEEE Scope
  • WEEE B2C / B2B:
    Business To Business
  • CN8:
    85389099
  • eClass:
    V11.0 : 27182204
  • Object Classification Code:
    U

Product Datasheet
