View larger
Images are for illustrative purposes only. Please refer to data sheet for details

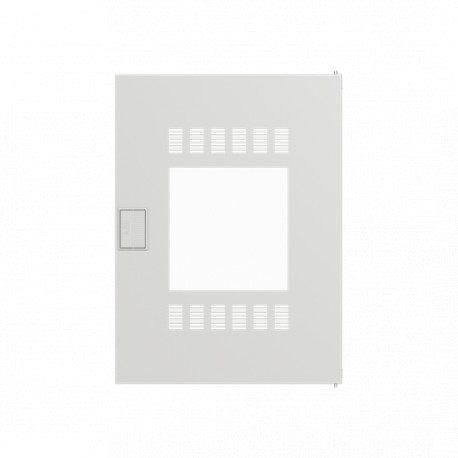

2CPX031158R9999 ABB AZT620W AK600 Door 2F wifi
2CPX031158R9999
2CPX031158R9999
ABB
1 Pcs.
AZT620W AK600 Door 2F wifi
Enclosure accessories UK600 / AK600 accessories, 24 modules, 2 row(s), IP20, Door: Single, Steel Sheet, Dimensions: 425 mm x 311 mm x 13 mm
Automation > Door/operating panel (switchgear cabinet)
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | Protective door |
| Number of Rows | 2 |
| Accessory Type | door |
| Enclosure Type | Enclosure accessories |
| Door Type | Single |
| Accessories Available | Yes |
| DIN Place Units | 24 |
| Design | |
| Surface Finishing | Powder-coated |
| Material | Sheet steel / Plastic |
| Door Material | Steel Sheet |
| Color | Traffic white |
| Number of Modules | 24 |
| Material Compliance | |
| RoHS Declaration | 2CPC100018X0201 |
| 2CPC100022X0202 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903;20230921 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Degree of Protection | IP20 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 311 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 13 mm |
| Product Net Weight | 1.301 kg |
| Section Width | 1 |
| Dimension Diagram | 2CPC000010D0201 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 1.353 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100018X0201 |
| 2CPC100022X0202 | |
| Installation | |
| Instructions and Manuals | 2CPC140003M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Protective door |
| Version as glazed door (EF006966) | Yes |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 311 mm |
| Height (EF000040) | 425 mm |
| Depth (EF000049) | 13 mm |
| EMC-version (EF001062) | No |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | White |
| Degree of protection (IP) (EF005474) | IP20 |
