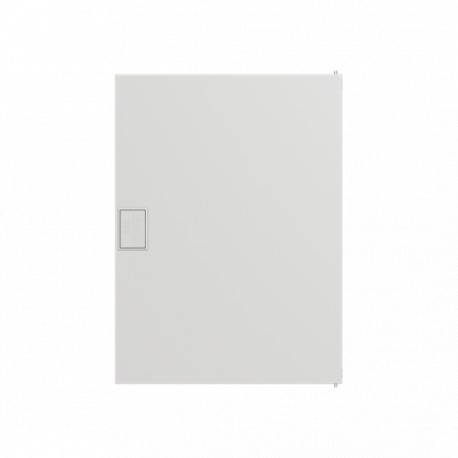

2CPX031150R9999 ABB AZT620 AK600 Door 2F RAL 9016
2CPX031150R9999
2CPX031150R9999
ABB
1 Pcs.
Automation > Door/operating panel (switchgear cabinet)
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part number 2CPX031150R9999 is a protective door accessory built for residential and commercial modular distribution boards. Front covers and doors of this type shield internal circuit breakers while maintaining a clean, professional aesthetic in building installations.
Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model Number: Protective door
- Number of Rows: 2
- Accessory Type: door
- Enclosure Type: Enclosure accessories
- Door Type: Single
- Accessories Available: Yes
- DIN Place Units: 24
- Surface Finishing: Powder-coated
- Material: sheet steel
- Door Material: Steel Sheet
- Color: Traffic white
- Number of Modules: 24
- RoHS Declaration: 2CPC100018X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20240903;20230921
- REACH Declaration: 2CPC100005X0201
More info
▲| Technical | |
|---|---|
| Model Number | Protective door |
| Number of Rows | 2 |
| Accessory Type | door |
| Enclosure Type | Enclosure accessories |
| Door Type | Single |
| Accessories Available | Yes |
| DIN Place Units | 24 |
| Design | |
| Surface Finishing | Powder-coated |
| Material | sheet steel |
| Door Material | Steel Sheet |
| Color | Traffic white |
| Number of Modules | 24 |
| Material Compliance | |
| RoHS Declaration | 2CPC100018X0201 |
| 2CPC100022X0202 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903;20230921 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Degree of Protection | IP40 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 311 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 13 mm |
| Product Net Weight | 1.137 kg |
| Section Width | 1 |
| Dimension Diagram | 2CPC000010D0201 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 1.182 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100018X0201 |
| 2CPC100022X0202 | |
| Installation | |
| Instructions and Manuals | 2CPC140003M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
