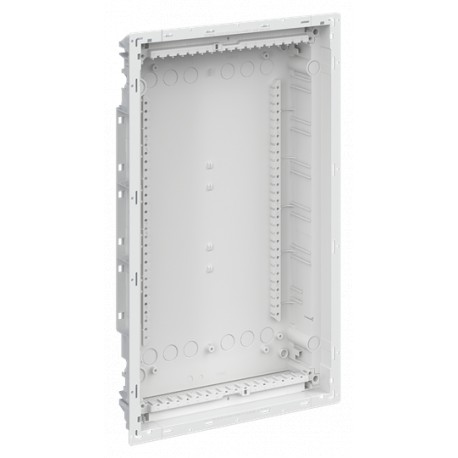

ABB 2CPX031115R9999 2CPX031115R9999 ABB UZB636 Recessed box body UK600.3fil. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX031115R9999 ABB UZB636 Recessed box body UK600.3fil.

2CPX031115R9999

031115

ABB

1 Pcs.

UZB636 Recessed box body UK600.3fil. UZB636 wall box UK600 3 R

Automation > Mounting accessories (switchgear cabinet)
Residential boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Housing modular electrical distribution equipment securely within building walls, the 2CPX031115R9999 ABB UZB636 Recessed box body UK600.3fil. acts as a cavity wall enclosure. Recessed wall boxes offer a sturdy mounting base for circuit breakers, residual current devices, and terminal blocks in commercial or residential wiring systems. These enclosures ensure flush, professional integration into interior partition walls.

Final pricing, availability, and lead times are confirmed per enquiry through an RFQ.

  • Extended Product Type: UZB636
  • Product ID: 2CPX031115R9999
  • Catalog Description: UZB636 wall box UK600 3 R
  • E-Number (Sweden): 2201232
  • Accessory Type: wall box
  • Color: White
  • DIN Place Units: 36
  • Enclosure Type: Consumer unit
  • Field Width: 1
  • Number of Rows: 3
  • Product Main Type: UZ
  • Product Name: UZB636 wall box UK600 3 R
  • Data Sheet, Technical Information: 2CPC000001C0101 2CPC000002C0101 2CPC000031C0101 2CPC000187C0101 2CPC000188C0101
  • Instructions and Manuals: 2CPC129380M5601
  • WEEE Category: Product Not in WEEE Scope
  • Product Net Width: 363 mm

More info

▲
  • Extended Product Type:
    UZB636
  • Product ID:
    2CPX031115R9999
  • EAN:
    4011617311157
  • Catalog Description:
    UZB636 wall box UK600 3 R
  • Long Description:
    The wall box with wall brackets, suitable for UK63..., is made out of a twist-resistant, break-resistant, low-flammable and low-halogen plastic. It offers large wiring space. The integrated cable-enty slider and strain relief comb is included in the wall box for professional internal wiring. Additional cable entry with perforations lateral and on the rear wall,of the wall box, with removable cable entry slider for one-hand operation and integrated t-ribs for terminals installation

Ordering

  • E-Number (Sweden):
    2201232
  • EAN:
    4011617311157
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000

Dimensions

  • Product Net Width:
    363mm
  • Product Net Height:
    597mm
  • Product Net Depth / Length:
    90mm
  • Product Net Weight:
    1.213kg

Container Information

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Width:
    370.000 mm
  • Package Level 1 Height:
    605.000 mm
  • Package Level 1 Depth / Length:
    98.000 mm
  • Package Level 1 Gross Weight:
    1.262 kg
  • Package Level 1 EAN:
    4011617311157

Additional Information

  • Accessory Type:
    wall box
  • Color:
    White
  • DIN Place Units:
    36
  • Enclosure Type:
    Consumer unit
  • Field Width:
    1
  • Material:
    Other
  • Number of Rows:
    3
  • Product Main Type:
    UZ
  • Product Name:
    UZB636 wall box UK600 3 R

Certificates and Declarations (Document Number)

Classifications

  • ETIM 5:
    EC002625 - Mounting accessories (switchgear cabinet)
  • ETIM 6:
    EC002625 - Mounting accessories (switchgear cabinet)
  • ETIM 7:
    EC002625 - Mounting accessories (switchgear cabinet)
  • Object Classification Code:
    U
  • WEEE Category:
    Product Not in WEEE Scope
