View larger
Images are for illustrative purposes only. Please refer to data sheet for details

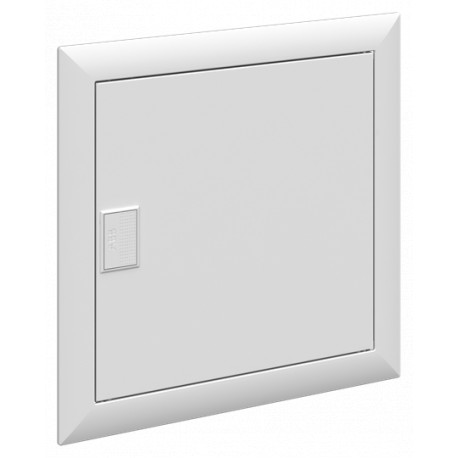

2CPX031081R9999 ABB BL610 Metal door frame. UK61...,white
2CPX031081R9999
031081
ABB
1 Pcs.
BL610 Metal door frame. UK61...,white
Enclosure accessories UK600 accessories, 12 modules, 1 row(s), IP30, Door: Single, Dimensions: 372 mm x 384 mm x 33 mm
Automation > Door/operating panel (switchgear cabinet)
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | Protective door |
| Number of Rows | 1 |
| Accessory Type | door with frame |
| Enclosure Type | Enclosure accessories |
| Door Type | Single |
| Accessories Available | Yes |
| DIN Place Units | 12 |
| Design | |
| Surface Finishing | Powder-coated |
| Material | Steel |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 12 |
| Material Compliance | |
| RoHS Declaration | 2CPC100018X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP30 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 372 mm |
| Product Net Depth / Length | 33 mm |
| Product Net Weight | 1.245 kg |
| Section Width | 1 |
| Dimension Diagram | 2CPC000001D0201 |
| Engineering | |
| Building Information Modeling – BIM | 9AKK107046A7951 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 1.295 kg |
| E-Number (Sweden) | 2201186 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100018X0201 |
| Installation | |
| Instructions and Manuals | 2CPC130111M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
