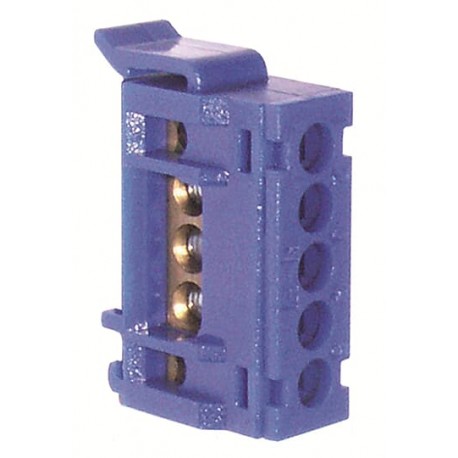

2CPX030892R9999 ABB ZK507 N-RCD Term. Busbar 5x10 sq
2CPX030892R9999
2CPX030892R9999
ABB
1 Pcs.
Automation > Single- and multi-pole terminal strip
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Abb ZK507 N-RCD Term. Busbar 5x10 sq is a terminal busbar designed for secure neutral conductor distribution and organization within electrical panels. Busbars like this simplify wiring management by providing multiple clamp positions for systematic conductor termination. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: ZK507
- Product ID: 2CPX030892R9999
- Catalog Description: ZK507 Terminals
- Rated Operational Voltage: Maximum 230 V
- Operational Voltage: 230 V
- Rated Current (I n ): 63 A
- Number of Poles: 1
- Number of Clamp Positions: 55
- Number of Line Terminals: 5
- Accessory Type: terminals
- Connection Type: Screw
- Enclosure Type: Terminals
- Mounting Type: Direct mounting
- Terminal Connection Type: Side
- Insulation Material: Thermoplastic
- DIN Place Units: 0
More info
▲- Extended Product Type:
- ZK507
- Product ID:
- 2CPX030892R9999
- EAN:
- 4011617308928
- Catalog Description:
- ZK507 Terminals
- Long Description:
- N-FI rail, clear color coding: N = blue, number of terminals: 3 x 16 mm² + 2 x 10 mm², screw-on,
Technical
- Suitable For:
- AL22|AL31|AL32|AL41|AL42|AL43|AL51|AL52|AL53|AL54|AL61|AL62|AL63|AL64|AL72|AL73|AT22E|AT31|AT32|AT32R2|AT32TE|AT32TR2|AT41|AT41R3|AT41TE|AT41TR3|AT42|AT42/2|AT42M|AT42R3|AT42TE|AT42TR3|AT43|AT43R3|AT43TR3|AT51|AT51R4|AT51TE|AT51TR4|AT52|AT52/2|AT52K|AT52R_x0013_Ǜ粑_xDC84__x0013_粐Ȩ粑_xFFFF__xFFFF_Ȣ粑ƛ粑Ǜ粑_xDD50__x0013_༁
- Rated Operational Voltage:
- Maximum 230 V
- Operational Voltage:
- 230 V
- Rated Current (In):
- 63 A
- Number of Poles:
- 1
- Number of Clamp Positions:
- 55
- Number of Line Terminals:
- 5
- Accessory Type:
- terminals
- Connection Type:
- Screw
- Enclosure Type:
- Terminals
- Mounting Type:
- Direct mounting
- Terminal Connection Type:
- Side
- Insulation Material:
- Thermoplastic
- DIN Place Units:
- 0
- Meter Boards:
- 0
- Color:
- Blue
- Rated Cross-Section:
- 1 - Solid-Core 1,5...16 mm²
2 - Fine-Strand with Cable End Sleeve 1.5...10 mm²
2 - Fine-Strand with Cable End Sleeve 0,75...10 mm²
3 - Fine-Strand without Cable End Sleeve 10 mm²
4 - Multi-Wired 10 mm²
- Terminal Type:
- Quick-Terminal
Material Compliance
- RoHS Information:
- 2CPC100009X0201
2CPC100018X0201
2CPC100022X0202
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date:
- 20230918
- REACH Declaration:
- 2CPC100005X0201
- REACH Information:
- False - does not contains substances > 0.1 mass percentage
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
- SCIP:
- 7073baf8-cd8c-4325-a764-4804d0237dad Germany (DE)
Environmental
- Degree of Protection:
- IP30
Dimensions
- Product Net Width:
- 42mm
- Product Net Height:
- 36mm
- Product Net Depth / Length:
- 15mm
- Product Net Weight:
- 0.02kg
Ordering
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Gross Weight:
- 0.021 kg
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CPC100009X0201
2CPC100018X0201
2CPC100022X0202
Installation
- Instructions and Manuals:
- No document needed
Popular Downloads
- Data Sheet, Technical Information:
- No document needed
Classifications
- ETIM 8:
- EC001284 - Single- and multi-pole terminal strip
- ETIM 9:
- EC001284 - Single- and multi-pole terminal strip
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369010
- eClass:
- V11.0 : 27141106
- Object Classification Code:
- U
