View larger
Images are for illustrative purposes only. Please refer to data sheet for details

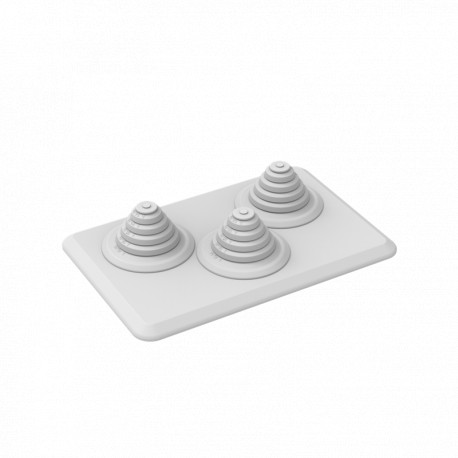

2CPX010933R9999 ABB TZ105P10 Cap pasac.3conos 14-54 TL.10ud
2CPX010933R9999
010933
ABB
1 Pcs.
TZ105P10 Cap pasac.3conos 14-54 TL.10ud
Flange, 147 mm x 223 mm x 20 mm
Automation > Gland plate for small distribution boards/switchgear cabinets
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | Other |
| Number of Connection Holes | 0 |
| Enclosure Type | Flange |
| Meter Type | " |
| Product Type | Straight |
| Accessories Available | No |
| Number of Batteries | 0 |
| Design | |
| Surface Finishing | Untreated |
| Material | Plastic |
| Material Compliance | |
| RoHS Declaration | 2CPC100021X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250919 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 223 mm |
| Product Net Height | 147 mm |
| Product Net Depth / Length | 20 mm |
| Product Net Weight | 3.772 kg |
| Thickness | 3 mm |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 4.142 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100021X0201 |
| Installation | |
| Instructions and Manuals | 2CPC133967M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000211 - Gland plate for enclosure/cabinet |
| ETIM 10 | EC000211 - Gland plate for enclosure/cabinet |
| eClass | V11.0 : 27142421 |
| Object Classification Code | U |
