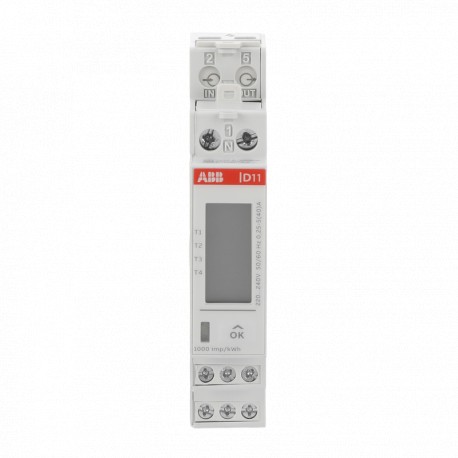

2CMA241665R1000 ABB Ener counter. D11 15-M 40A Modbus MID
2CMA241665R1000
2CMA241665R1000
ABB
1 Pcs.
Ener counter. D11 15-M 40A Modbus MID
Energy meter '15', Modbus, 1-phase, 40 A
Automation > Kilowatt-hour meter
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2CMA241665R1000 ABB Ener counter. D11 15-M 40A Modbus MID is an advanced electricity meter used to measure power consumption and transmit operational data over communication networks in automated facilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- EcoSolutions Profile: 9AKK108469A7385
- Material Resource Reduction (wt. %): Design for Reduced Resource Consumption - 49.4 %
- Sustainable Material Content in Product (wt. %): Recycled Metal - 26 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Sustainable Material Content in Packaging (wt. %): FSC Recycled Paperboard - 82 %
- Offered with Takeback Services: Take Back for Recycling
- End Of Life Disassembling Instructions: 9AKK108469A6369
- Environmental Product Declaration - EPD: 9AKK108469A4516
- Application: Purchase/supply
- Function: Electricity meter
- Sub-Function: 15
- Current Rating: 40 A
- Communication Interface: Modbus
- Accuracy: Active Energy Class B MID (±1%)
- Measuring Instrument Conformity: Measurement Instrument Directive (MID)
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108469A7385 |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption - 49.4 % |
| Sustainable Material Content in Product (wt. %) | Recycled Metal - 26 % |
| Mechanically Recycled Polymer - 70 % | |
| Recycled Metal - 76 % | |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Sustainable Material Content in Packaging (wt. %) | FSC Recycled Paperboard - 82 % |
| Improved Energy Efficiency for Customers | Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line |
| Offered with Takeback Services | Take Back for Recycling |
| End Of Life Disassembling Instructions | 9AKK108469A6369 |
| Environmental Product Declaration - EPD | 9AKK108469A4516 |
| Technical | |
| Application | Purchase/supply |
| Function | Electricity meter |
| Sub-Function | 15 |
| Current Rating | 40 A |
| Communication Interface | Modbus |
| Accuracy | Active Energy Class B MID (±1%) |
| Measuring Instrument Conformity | Measurement Instrument Directive (MID) |
| Meter Tariff Control | Internal |
| External | |
| Meter Tariff Rating | Two-Tariff |
| Pulse Output Rate | 1-999999 |
| Model Number | Direct measurement |
| Number of Poles | 1P |
| Number of Phases | 1-phase |
| Number of Counter Positions | 6 |
| Number of Digital In/Outputs | 1 Digital Input, 1 Digital Output |
| Meter Type | Direct connected |
| Pulse Output Type | Electrical |
| Type of Indicator | Digital |
| Communication | Modbus RTU |
| Number of Batteries | 0 |
| Connecting Capacity Main Circuit | 1 ... 10 mm² |
| Electrical | |
| Rated Voltage (Ur) | 220 ... 240 V |
| Voltage Range | 176...288 V |
| Rated Current (In) | 5 A |
| Maximum 40 A | |
| Frequency (f) | 50 / 60 Hz |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Consumption (@Pcons) | 0.69 W |
| Design | |
| Enclosure Material | Housing and terminal covers: made with at least 70% of recycle plastic Frontal Panel: UV resistant Polyester |
| Material Compliance | |
| RoHS Declaration | 9AKK108469A1600 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240730 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240521 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -40 ... +85 °C | |
| Degree of Protection | IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 17.5 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 70 g |
| Screen Size | 1 in |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.0777 kg |
| E-Number (Finland) | 6719073 |
| E-Number (Norway) | 8002567 |
| Installation | |
| Instructions and Manuals | 9AKK108469A1075 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108468A8828 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| eClass | V11.0 : 27142316 |
| Standards | EN 50470-3 |
| IEC 62052-11 | |
| IEC 62052-31 | |
| IEC 62053-21 | |
| IEC 62052-23 | |
