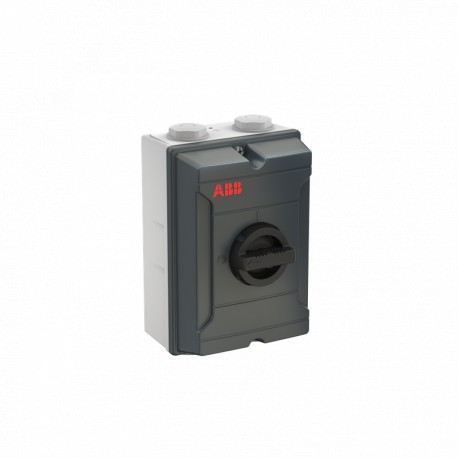

ABB 2CMA142629R1000 2CMA142629R1000 ABB Int. disconnector in LBAS390TPN box View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CMA142629R1000 ABB Int. disconnector in LBAS390TPN box

2CMA142629R1000

142629

ABB

1 Pcs.

Int. disconnector in LBAS390TPN box LBAS390TPN Boxed Disconnector Int. The dye casted aluminum alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the easy access to terminals, screwed cover and with the grommet type of glands included. The cover is interlocked, and handle padlockable with two padlocks. The handle can also be padlocked in On position, by removing two small plastic bits. N and PE terminals included.

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
LBAS390TPN
Product ID:
2CMA142629R1000
EAN:
7392696426299
Catalog Description:
LBAS390TPN Safety switch
Long Description:
The dye casted aluminum alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the easy access to terminals, screwed cover and with the grommet type of glands included. The cover is interlocked, and handle padlockable with two padlocks. The handle can also be padlocked in On position, by removing two small plastic bits. N and PE terminals included.
\n

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85363030
Country of Origin:
Bulgaria (BG)

Popular Downloads

Data Sheet, Technical Information:\n1SCC340015C0201
Instructions and Manuals:\n1SCC340166M0205
Mechanical Drawings:\nOTFK2231614RM40.stp

Dimensions

Product Net Width:
160 mm
Product Net Height:
230 mm
Product Net Depth / Length:
118 mm
Product Net Weight:
1.75 kg

Technical

Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 125 A

(500 V) 125 A

(690 V) 125 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 90 A

(500 V) 70 A

(690 V) 50 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 45 kW

(500 V) 45 kW

(690 V) 45 kW
Conventional Free-air Thermal Current (Ith):
125 A
Conventional Thermal Current (Ithe):
Fully Enclosed 125 A
Rated Insulation Voltage (Ui):
acc. to  IEC/EN 60664-1 750 V
Rated Operational Voltage:
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm):
(690 V AC) 3.6 kA
Rated Short-time Withstand Current (Icw):
for 1 s 2.5 kA
Handle Color:
Black
Handle Type:
Round handle
Standards:
IEC 60947-3
Number of Poles:
3
Connecting Capacity Main Circuit:
Screw Clamp 10…70 mm²

Screw Clamp / PE Terminal 1pcs, 6…35 mm²
Cable Entry Position:
Up/Down
Cable Outlets Per Side:
2xM40 / 2xM40+M16
Enclosure Material:
Aluminium
Maximum Mounted Auxiliary Contacts:
2 NO, 2 NC
Mounted Auxiliary Contacts:
1 NO, 0 NC
Number of Auxiliary Contacts NO:
1

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n1SCC340062D2702
Instructions and Manuals:\n1SCC340166M0205
RoHS Information:\n2CMC300025D0001

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
Package Level 1 Depth / Length:
240 mm
Package Level 1 Height:
150 mm
Package Level 1 Gross Weight:
1.75 kg
Package Level 1 EAN:
7392696426299

Classifications

Object Classification Code:
Q

2CMT005069
ETIM 4:
EC000140 - CEE plug
ETIM 5:
EC000216 - Switch disconnector
ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnector
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 2CMA142629R1000 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) Yes
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 750 V
Rated operating voltage (EF001435) 750 V
Rated permanent current Iu (EF001389) 125 A
Rated permanent current at AC-23, 400 V (EF011777) 90 A
Rated short-time withstand current lcw (EF007050) 2.5 kA
Rated operation power at AC-23, 400 V (EF007027) 45 kW
Switching power at 400 V (EF009166) 45 kW
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 1
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Colour control element (EF007167) Black
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) Yes
Degree of protection (NEMA) (EF011959) Other
