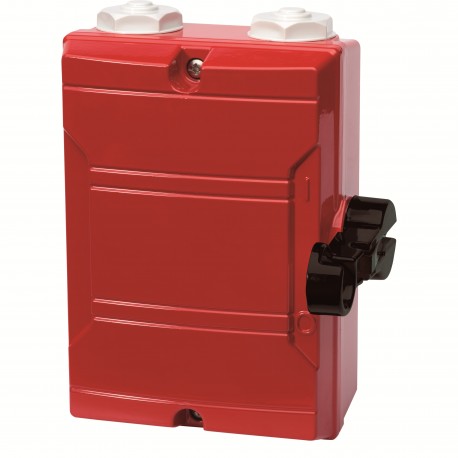

2CMA142435R1000 ABB Int. Boxed disconnector KSF225DP
2CMA142435R1000
142435
ABB
1 Pcs.
Int. Boxed disconnector KSF225DP
KSF225DP Fireman switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB Int. Boxed disconnector KSF225DP is an enclosed load break switch designed to provide secure local circuit isolation in demanding environments. Housed units of this type are frequently mounted near outdoor equipment or industrial machinery to protect maintenance personnel through reliable lockout capabilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: CMC300001D0002
- Instructions and Manuals: 9AKK108467A6812
- Mechanical Drawings: LBA1R131160DM25.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
- Country or Territory of Origin: Bulgaria
- Product Net Width: 111 mm
- Product Net Height: 130 mm
- Product Net Depth / Length: 60 mm
- Product Net Weight: 0.57 kg
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | CMC300001D0002 |
| Instructions and Manuals | 9AKK108467A6812 |
| Mechanical Drawings | LBA1R131160DM25.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Net Width | 111 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.57 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 112 mm |
| Package Level 1 Depth / Length | 131 mm |
| Package Level 1 Height | 62 mm |
| Package Level 1 Gross Weight | 0.57 kg |
| Package Level 1 EAN | 7392696424356 |
| Technical | |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top and/or Bottom |
| Cable Outlets Per Side | 2xM25 / 2xM25 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm² |
| Screw Clamp / PE Terminal 1pc,0.75 ... 10 mm² | |
| Conventional Free-air Thermal Current (Ith) | 25 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Aluminium |
| Handle Color | Black |
| Handle Type | Side-operated handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 2P |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (230 V) 25 A |
| (380 ... 415 V) 25 A | |
| Rated Operational Current AC-23A (Ie) | (230 V) 16 A |
| (380 ... 415 V) 16 A | |
| Rated Operational Power AC-23A (Pe) | (230 V) Single Phase 2.2 kW |
| Rated Operational Voltage | Main Circuit 690 V |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 1.2 N·m |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 1.2 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340062D2702 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| 2CMT005069 | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601600 |
