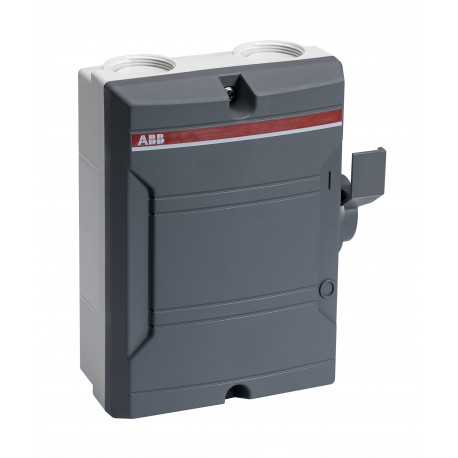

2CMA142408R1000 ABB Int. Box Disconnector BW340TPN
2CMA142408R1000
2CMA142408R1000
ABB
10 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB Int. Box Disconnector BW340TPN functions as an electrical disconnect device housed within an enclosure to safely isolate circuits during maintenance or emergency procedures. This unit is typically deployed in industrial control panels and distribution boards to interrupt power flow locally. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 9AKK108467A6812
- Mechanical Drawings: BAS2161368DM32.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85363030
- Country or Territory of Origin: Bulgaria
- Product Net Width: 138 mm
- Product Net Height: 168 mm
- Product Net Depth / Length: 68 mm
- Product Net Weight: 0.41 kg
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 9AKK108467A6812 |
| Mechanical Drawings | BAS2161368DM32.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Net Width | 138 mm |
| Product Net Height | 168 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 0.41 kg |
| Container Information | |
| Package Level 1 Units | ten pack 1 piece |
| Package Level 1 Width | 275 mm |
| Package Level 1 Depth / Length | 350 mm |
| Package Level 1 Height | 170 mm |
| Package Level 1 Gross Weight | 4.1 kg |
| Package Level 1 EAN | 7392696424080 |
| Technical | |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32 / 2xM32+M16 |
| Color | RAL7012 / RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm² |
| Screw Clamp / PE Terminal 1pc,0.75 ... 10 mm² | |
| Conventional Free-air Thermal Current (Ith) | 40 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Grey |
| Handle Type | Side-operated handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A |
| (690 V) 25 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 25 A |
| (500 V) 25 A | |
| (690 V) 16 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 11 kW |
| (500 V) 15 kW | |
| (690 V) 11 kW | |
| Rated Operational Voltage | Main Circuit 690 V |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 1.2 N·m |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 1.2 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340062D2702 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| 2CMT005069 | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
