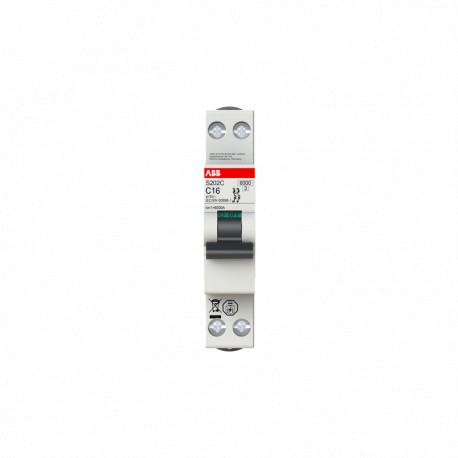

ABB 2CDS272280R0164 2CDS272280R0164 ABB Int.aut. S202CM-C16 2 16A C 10 kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CDS272280R0164 ABB Int.aut. S202CM-C16 2 16A C 10 kA

2CDS272280R0164

272280

ABB

1 Pcs.

Int.aut. S202CM-C16 2 16A C 10 kA Miniature circuit breaker - S200CM - 2P - 16 A - C - (230 V) 10 kA

Automation > Miniature circuit breaker (MCB)
Tertiary / Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 85.36 %
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 52 %
Sustainable Material Content in Packaging (wt. %)FSC 100% Cardboard - 100 %
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Extended Product LifetimeProduct Durability
End Of Life Disassembling Instructions9AKK108468A3913
Environmental Product Declaration - EPD9AKK108467A5789
Technical
Dielectric Test Voltage50 / 60 Hz - 1 min 2.5 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 10 kA
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles2
Number of Poles2P
Tightening Torque3 N·m
Actuator MarkingI / O
Options ProvidedG2C accessories
Accessories AvailableYes
Connecting CapacityFlexible 1 … 10 mm²
Rigid 1 … 16 mm²
Installation Sizeacc. to DIN 43880 1
Terminal TypeScrew Terminals
Electrical
Tripping CharacteristicC
Rated Operational Voltageacc. to IEC 60898-1 240 V
Operational VoltageMaximum (Incl. Tolerance) 264 V AC
Maximum 264 V AC
Minimum 12 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)16 A
Rated Short-Circuit Capacity(230 V) 10 kA
Rated Conditional Short-Circuit Current (Inc)(230 V) 10 kA
Rated Frequency (f)50/60 Hz
Power LossTotal 4.2 W
Overvoltage CategoryIII
Design
Housing MaterialInsulation Group I, RAL 7035
Material Compliance
RoHS Declaration9AKK107492A9802
RoHS InformationFollowing EU Directive 2011/65/EU
RoHS Date20191001
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP30afec86-a9d7-4438-a3ef-6f6285acb35e Poland
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -25 ... +55 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
Pollution Degree2
Environmental Conditions28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2740g / 18 shocks / 5 ms
Dimensions
Width in Number of Modular Spacings1
Product Net Width18 mm
Product Net Height86 mm
Product Net Depth / Length70 mm
Product Net Weight0.16 kg
Built-In Depth (t2)70 mm
Ordering
Package Level 1 Unitscarton 12 piece
Package Level 1 Gross Weight1.97 kg
E-Number (Norway)1683283
Replacement Product ID (NEW)2CSS272420R0164
Certificates and Declarations
Declaration of Conformity - CE9AKK107492A9802
Installation
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
Popular Downloads
Data Sheet, Technical Information9AKK107492A9936
External Classifications and Standards
ETIM 9EC000042 - Miniature circuit breaker (MCB)
ETIM 10EC000042 - Miniature circuit breaker (MCB)
UNSPSC39121614
eClassV11.0 : 27141901
Object Classification CodeF
StandardsIEC/EN 60898-1

ETIM for 2CDS272280R0164 Circuit breakers and fuses (EC000042)
Feature Name Feature Value
Built-in depth (EF000218) 70 mm
Release characteristic (EF000889) C
Number of poles (total) (EF008618) 2
Number of protected poles (EF005548) 2
Rated current (EF000227) 16 A
Rated voltage (EF000228) 240 V
Rated insulation voltage Ui (EF001366) 500 V
Rated impulse withstand voltage Uimp (EF011980) 4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (EF009556) 10 kA
Voltage type (EF000187) AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) 10 kA
Frequency (EF000416) 50 Hz
Current limiting class (EF002568) 3
Flush-mounted installation (EF007517) No
Concurrently switching neutral conductor (EF005997) No
Over voltage category (EF002569) 3
Pollution degree (EF002570) 2
Additional equipment possible (EF008148) Yes
Width in number of modular spacings (EF002950) 1
Degree of protection (IP) (EF005474) IP20
Ambient temperature during operating (EF007515) -25 °C
Connectable conductor cross section multi-wired (EF007343) 1 mm²
Connectable conductor cross section solid-core (EF007337) 1 mm²
Explosion-proof (EF004663) No
