View larger
Images are for illustrative purposes only. Please refer to data sheet for details

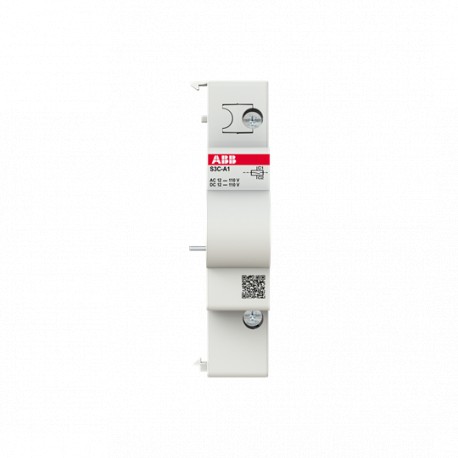

2CDS200982R0001 ABB Bob.em.S3C-A1, 12-60Vac/dc (right)
2CDS200982R0001
2CDS200982R0001
ABB
1 Pcs.
Bob.em.S3C-A1, 12-60Vac/dc (right)
Shunt trip 12…110V
Automation > Auxiliary device for distribution board devices
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | S200 |
| S200 M | |
| S200 MT | |
| S200 MTR | |
| S200 P | |
| S200 MUC | |
| S300 P | |
| VY30 | |
| SD200 | |
| F200 | |
| RCCB VY | |
| SN201 | |
| DS203NC | |
| S-ARC1 | |
| DS-ARC1 | |
| DSE201 M | |
| DS201 | |
| DS301C | |
| S3C-MOD | |
| F3C-AR | |
| DS200 | |
| DS202CR | |
| Suitable for Product Class | Auxiliary switch/relay |
| Tightening Torque | 0.8 N·m |
| Connecting Capacity | Flexible 0.75 ... 2.5 mm² |
| Rigid 0.75 ... 2.5 mm² | |
| Stranded 0.75 ... 2.5 mm² | |
| Wire Stripping Length | 7 mm |
| Terminal Type | Screw Terminals |
| Electrical | |
| Rated Voltage (Ur) | 12 ... 110 V |
| Rated Operational Voltage | 12 ... 110 AC/DC V |
| Input Voltage Type | AC/DC |
| Material Compliance | |
| RoHS Declaration | 2CDK400627D2701 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231016 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240821 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Storage -40 ... +70 °C | |
| Dimensions | |
| Width in Number of Modular Spacings | 1.0 |
| Product Net Width | 17.4 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 74.1 mm |
| Product Net Weight | 0.063 kg |
| Dimension Diagram | 9AKK108469A5079 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.086 kg |
| E-Number (Finland) | 3217613 |
| E-Number (Sweden) | 2101485 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK400627D2701 |
| Declaration of Conformity - UKCA | 9AKK108469A1474 |
| Installation | |
| Instructions and Manuals | 2CDS207010P0001 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108469A4389 |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27143502 |
| IDEA Granular Category Code (IGCC) | 4879 >> Shunt release (for power circuit breaker) |
| Standards | CSA 22.2 No. 235 |
| UL 1077 | |
| Feature Name | Feature Value |
|---|---|
| Device fitting (EF007826) | Auxiliary switch / relay |
| Width in number of modular spacings (EF002950) | 1.0 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated voltage (EF000228) | 110 V |
| With auto test for earth leakage function (EF008727) | No |
