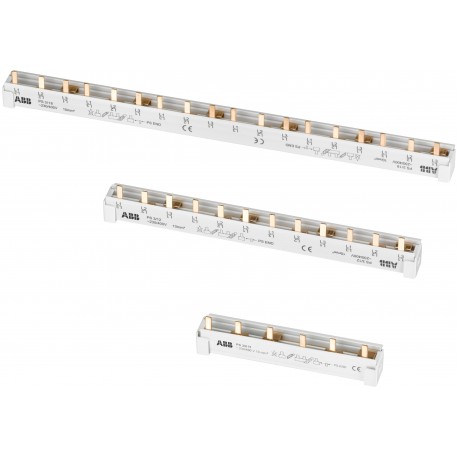

2CDL240213R1012 ABB PS4/12NA Bar Block
2CDL240213R1012
240213
ABB
1 Pcs.
PS4/12NA Bar Block
PS 4/12N A Busbar
Automation > Phase busbar
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Sub-Function | cross wiring for neutral conductor |
| Suitable For | S200 |
| F200 | |
| DDA200 | |
| Suitable for Product Class | PS4/32-DDA204 |
| Pitch | 17.5 |
| Number of Poles | 12P |
| Number of Phases | 4-phase |
| Number of Mountable Devices | 3 |
| Number of Terminals (Nterm) | 12 |
| Accessory Type | Busbar |
| Connection Type | Pin |
| Options Provided | NA |
| Rated Cross-Section | 10 mm² |
| Electrical | |
| Rated Operational Voltage | 230 / 400 V AC |
| Maximum 690 V | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 25 kA |
| Rated Uninterrupted Current (Iu) | 63 A |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Overvoltage Category | III |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A1264 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230517 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | af3c6049-b65e-44ae-90c0-ab4281e14730 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Pollution Degree | 2 |
| Environmental Information | DIN EN 60068 |
| Dimensions | |
| Width in Number of Modular Spacings | 12.0 |
| Product Net Width | 19.3 mm |
| Product Net Height | 30.5 mm |
| Product Net Depth / Length | 212 mm |
| Product Net Weight | 0.105 kg |
| Ordering | |
| Package Level 1 Units | carton 30 piece |
| Package Level 1 Gross Weight | 3.31 kg |
| E-Number (Finland) | 3210196 |
| E-Number (Norway) | 1665945 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108469A0841 |
| Declaration of Conformity - UKCA | 9AKK108469A0914 |
| Installation | |
| Instructions and Manuals | 2CSC400002D0208 |
| Mounting Position | any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC000215 - Phase busbar |
| ETIM 10 | EC000215 - Phase busbar |
| UNSPSC | 39121117 |
| eClass | V11.0 : 27371306 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase busbar |
| Object Classification Code | W |
| Standards | IEC/EN 60947-1 |
| Feature Name | Feature Value |
|---|---|
| Number of phases (EF000351) | 4 |
| Number of poles (EF001391) | 12 |
| Suitable for number of devices (EF007241) | 3 |
| Module width (EF007504) | 17.5 mm |
| Cross section (EF000649) | 10 mm² |
| Length (EF001438) | 212 mm |
| Width in number of modular spacings (EF002950) | 12.0 |
| Rated permanent current Iu (EF001389) | 63 A |
| Type of electric connection (EF003961) | Pin |
| Insulated (EF000019) | Yes |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Rated short-time withstand current lcw (EF007050) | 25 kA |
| Suitable for devices with N-conductor (EF007218) | Yes |
| Suitable for devices with auxiliary switch (EF007217) | No |
| Colour (EF000007) | Grey |
