View larger
Images are for illustrative purposes only. Please refer to data sheet for details

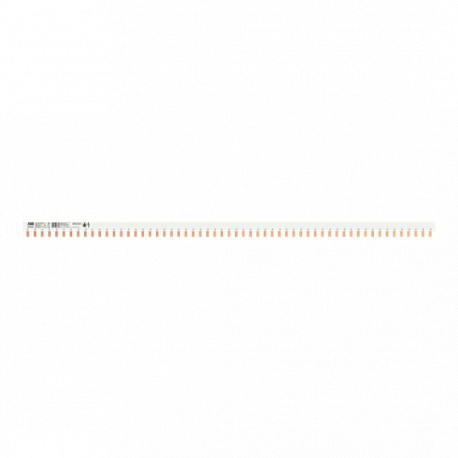

2CDL230508R5718 ABB PS Bar Block 3/57/18 CB
2CDL230508R5718
2CDL230508R5718
ABB
1 Pcs.
PS Bar Block 3/57/18 CB
PS 3/57/18 CB Busbar 3Ph., 57Pins, 18qmm
Automation > Phase busbar
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Sub-Function | cULus |
| Suitable for Product Class | MCBs (UL 1077) |
| fuse disconnector E90 | |
| Number of Poles | 57P |
| Number of Phases | 3-phase |
| Number of Mountable Devices | 19 |
| Number of Terminals (Nterm) | 57 |
| Accessory Type | Busbar |
| Connection Type | Pin |
| Options Provided | CB |
| Rated Cross-Section | 18 mm² |
| Electrical | |
| Rated Operational Voltage | 690 V AC/DC |
| Maximum 600 V | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Uninterrupted Current (Iu) | 80 A |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Overvoltage Category | III |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | grey |
| Technical UL/CSA | |
| Maximum Continuous Operating Voltage UL/CSA (MCOV) | 600 volt AC / DC |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A1264 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230517 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240821 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Pollution Degree | 2 |
| Environmental Information | DIN EN 60068 |
| Dimensions | |
| Width in Number of Modular Spacings | 57.0 |
| Product Net Width | 21 mm |
| Product Net Height | 37 mm |
| Product Net Depth / Length | 1005 mm |
| Product Net Weight | 0.835 kg |
| Ordering | |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Gross Weight | 8.62 kg |
| E-Number (Finland) | 3212125 |
| Replaced Product ID (OLD) | 2CDL230111R1660 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108469A0843 |
| Declaration of Conformity - UKCA | 9AKK108469A0846 |
| Installation | |
| Mounting Position | any |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC000215 - Phase busbar |
| ETIM 10 | EC000215 - Phase busbar |
| UNSPSC | 39121117 |
| eClass | V11.0 : 27371306 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase busbar |
| Object Classification Code | W |
| Standards | UL 508 |
| UL 1077 | |
| IEC/EN 60947-1 | |
| Feature Name | Feature Value |
|---|---|
| Number of phases (EF000351) | 3 |
| Number of poles (EF001391) | 57 |
| Suitable for number of devices (EF007241) | 19 |
| Cross section (EF000649) | 18 mm² |
| Length (EF001438) | 1005 mm |
| Width in number of modular spacings (EF002950) | 57.0 |
| Rated permanent current Iu (EF001389) | 80 A |
| Type of electric connection (EF003961) | Pin |
| Insulated (EF000019) | Yes |
| Max. rated operation voltage Ue (EF007357) | 600 V |
| Rated short-time withstand current lcw (EF007050) | 10 kA |
| Suitable for devices with N-conductor (EF007218) | No |
| Suitable for devices with auxiliary switch (EF007217) | No |
| Colour (EF000007) | Grey |
