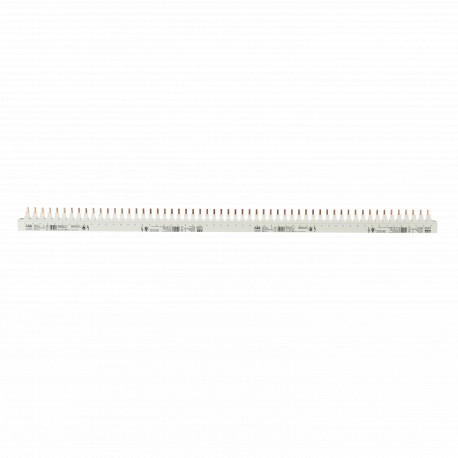

2CDL230489R1618 ABB PS3/18/16BP UL489 Bar Block
2CDL230489R1618
230489
ABB
1 Pcs.
Automation > Phase busbar
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB branch protection busbar block (part number 2CDL230489R1618) offers a heavy-duty distribution rail engineered for UL 489 compliant circuit protection setups in electrical installations. This component connects multiple pole devices securely to distribute electrical loads with minimal resistance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Sub-Function: Branch Protection (UL 489)
- Suitable For: S200U
- Suitable for Product Class: UL 489 Devices
- Pitch: 44698.0
- Number of Poles: 18P
- Number of Phases: 3-phase
- Number of Mountable Devices: 6
- Number of Terminals (N term ): 18
- Accessory Type: Busbar
- Connection Type: Pin
- Options Provided: BP
- Rated Cross-Section: 16 mm²
- Rated Operational Voltage: 690 V AC/DC
- Rated Short-time Withstand Current Low Voltage (I cw ): 10 kA
- Rated Uninterrupted Current (I u ): 80 A
- Rated Frequency (f): 50 / 60 Hz
More info
▲| Technical | |
|---|---|
| Sub-Function | Branch Protection (UL 489) |
| Suitable For | S200U |
| S200UP | |
| Suitable for Product Class | UL 489 Devices |
| Pitch | 44698.0 |
| Number of Poles | 18P |
| Number of Phases | 3-phase |
| Number of Mountable Devices | 6 |
| Number of Terminals (Nterm) | 18 |
| Accessory Type | Busbar |
| Connection Type | Pin |
| Options Provided | BP |
| Rated Cross-Section | 16 mm² |
| Electrical | |
| Rated Operational Voltage | 690 V AC/DC |
| Maximum 480 V | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Uninterrupted Current (Iu) | 80 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Overvoltage Category | III |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A1264 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230517 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Pollution Degree | 2 |
| Environmental Information | DIN EN 60068 |
| Dimensions | |
| Width in Number of Modular Spacings | 18.0 |
| Product Net Width | 15.5 mm |
| Product Net Height | 46 mm |
| Product Net Depth / Length | 310 mm |
| Product Net Weight | 0.235 kg |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 12.46 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108469A0835 |
| Declaration of Conformity - UKCA | 9AKK108469A0919 |
| Installation | |
| Instructions and Manuals | 2CSC400002D0208 |
| Mounting Position | any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC000215 - Phase busbar |
| ETIM 10 | EC000215 - Phase busbar |
| UNSPSC | 39121117 |
| eClass | V11.0 : 27371306 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase busbar |
| Object Classification Code | W |
| Standards | UL 489 |
