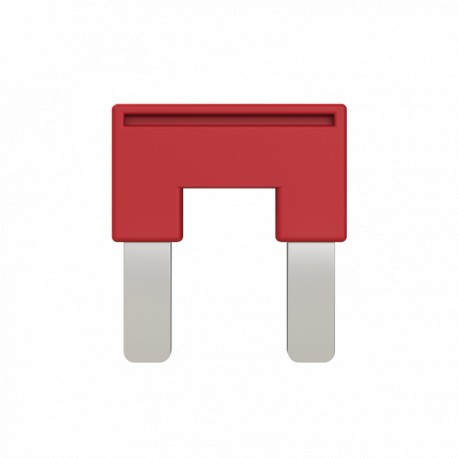

2CDE605300R0010 ABB EPD24 connectors (bag 1 kit)
2CDE605300R0010
605300
ABB
1 Pcs.
Connectors > Cross-connector for terminal block
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 2CDE605300R0010 ABB EPD24 connectors (bag 1 kit) by Abb serves as a modular jumper comb accessory designed for front-side mounting on circuit protection and distribution modules. Such connector kits allow panel builders to distribute power supply potentials cleanly across multiple electronic circuit breakers in industrial automation setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model Number: Jumper comb
- Mounting Position of Accessories: Front
- Wire Stripping Length: Auxiliary Circuit 8 mm
- Color: red blue
- RoHS Declaration: 9AKK107492A1906
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20230404
- REACH Declaration: 9AKK107492A1906
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20251028
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Consumer
- Width in Number of Modular Spacings: 15.0
- Product Net Width: 30 mm
- Product Net Height: 10 mm
More info
▲| Technical | |
|---|---|
| Model Number | Jumper comb |
| Mounting Position of Accessories | Front |
| Wire Stripping Length | Auxiliary Circuit 8 mm |
| For N Terminals 8 mm | |
| Design | |
| Color | red blue |
| Material Compliance | |
| RoHS Declaration | 9AKK107492A1906 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230404 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Dimensions | |
| Width in Number of Modular Spacings | 15.0 |
| Product Net Width | 30 mm |
| Product Net Height | 10 mm |
| Product Net Depth / Length | 45 mm |
| Product Net Weight | 9 g |
| Dimension Diagram | 9AKK108468A0613 |
| Engineering | |
| EPLAN Data | 9AAC171943_EPLAN |
| Ordering | |
| Package Level 1 Units | set 4 piece |
| Package Level 1 Gross Weight | 9 g |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108467A7547 |
| Declaration of Conformity - UKCA | 9AKK108468A0011 |
| Installation | |
| Instructions and Manuals | 9AKK108467A7088 |
| Mounting Type | Plug-In |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108467A7088 |
| External Classifications and Standards | |
| ETIM 9 | EC000489 - Cross-connector for terminal block |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
| UNSPSC | 39121426 |
| eClass | V11.0 : 27141901 |
| IDEA Granular Category Code (IGCC) | 4598 >> Jumper bar |
| Object Classification Code | F |
| Certification Agency | CSA |
| UL | |
| Standardization Body | UL |
| CSA | |
