View larger
Images are for illustrative purposes only. Please refer to data sheet for details

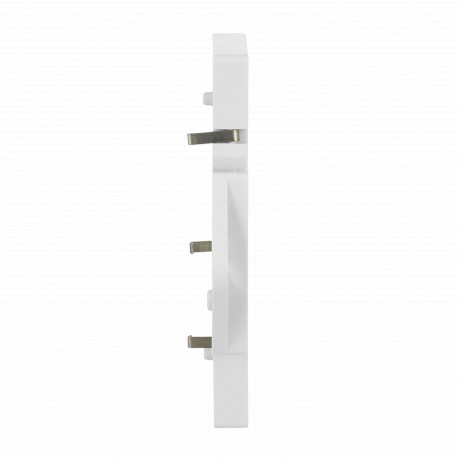

2CCS800017R0001 ABB UL S800-UPLL Interlocking Device
2CCS800017R0001
2CCS800017R0001
ABB
1 Pcs.
UL S800-UPLL Interlocking Device
S800U-PLL UL locking device
Automation > Accessories/spare parts for low-voltage switch technology
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | S800P |
| S800S | |
| S800N | |
| S800C | |
| S800B | |
| S800HV | |
| S800U | |
| S800PV-SP | |
| S800PV-SD | |
| S800PV-M-H | |
| Accessory Type | Mechanical locking |
| Accessories Available | Yes |
| Material Compliance | |
| RoHS Declaration | 9AKK107680A3903 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20190320 |
| REACH Declaration | 9AKK108470A9089 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250313 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 2CCY413207D0203 |
| Dimensions | |
| Product Net Width | 9 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 20 g |
| Dimension Diagram | 2CCC413003C0201 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 40 g |
| Certificates and Declarations | |
| Installation | |
| Instructions and Manuals | 9AKK106930A3418 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC413003C0208 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| eClass | V11.0 : 27371390 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | F |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Mechanical locking |
| Accessory (EF013236) | No |
| Spare part (EF013237) | Yes |
