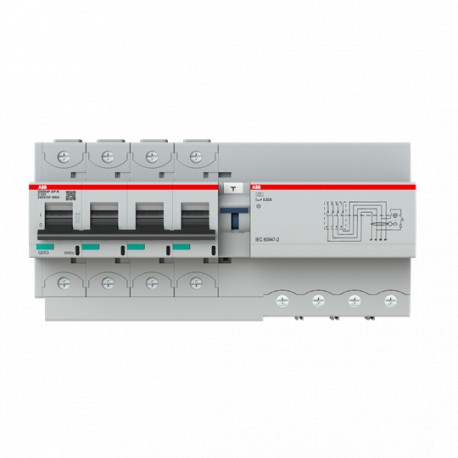

2CCG001347R0001 ABB Int. Com. DS800 4p C125 A-APR 50kA 30mA

2CCG001347R0001

001347

ABB

1 Pcs.

Int. Com. DS800 4p C125 A-APR 50kA 30mA Residual Current Circuit Breaker with Overcurrent Protection DS800P - 4P - 30 mA - 125 A - C

Automation > Distributor assembly with combination RCCB/MCB
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Supplied by Abb under part number 2CCG001347R0001, this four-pole residual current circuit breaker with overcurrent protection provides comprehensive fault current and thermal-magnetic protection for complex electrical grids. Four-pole breakers are vital for managing balanced and unbalanced three-phase loads with neutral switching in industrial automation environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated Operational Current (I e ): 125 A
  • Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (415 V AC) 50 kA
  • Rated Service Short-Circuit Breaking Capacity (I cs ): (240 / 415 V AC) 40 kA
  • Number of Protected Poles: 4
  • Number of Poles: 4P
  • Number of Earth Leakage Circuit Breakers (ELCBs): 1
  • Operating Characteristic: Instantaneous (APR High Immunity)
  • Release Type: C
  • Accessories Available: Yes
  • Short-Circuit Current Rating (SCCR): 30 mA
  • Tripping Characteristic: C
  • Rated Operational Voltage: acc. to IEC 60947-2 690 V AC
  • Rated Current (I n ): 125 A
  • Rated Residual Current: 30 mA
  • Maximum Breaking Capacity: 50 kA
  • Rated Frequency (f): 50 … 60 Hz

More info

▲
Technical
Rated Operational Current (Ie)125 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 50 kA
(440 V AC) 30 kA
(500 V AC) 10 kA
(690 V AC) 4.5 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(240 / 415 V AC) 40 kA
Number of Protected Poles4
Number of Poles4P
Number of Earth Leakage Circuit Breakers (ELCBs)1
Operating CharacteristicInstantaneous (APR High Immunity)
Release TypeC
Accessories AvailableYes
Electrical
Short-Circuit Current Rating (SCCR)30 mA
Tripping CharacteristicC
Rated Operational Voltageacc. to IEC 60947-2 690 V AC
Rated Current (In)125 A
Rated Residual Current30 mA
Maximum Breaking Capacity50 kA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 55.1 W
Material Compliance
RoHS Declaration9AKK108468A1488
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20230517
REACH Declaration9AKK108470A9089
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20250313
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Dimensions
Product Net Width227.5 mm
Product Net Height108.2 mm
Product Net Depth / Length82.3 mm
Product Net Weight1757 g
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight1757 g
E-Number (Norway)1628899
Certificates and Declarations
Declaration of Conformity - CE9AKK108468A1488
Declaration of Conformity - UKCA9AKK108468A1489
Installation
Instructions and Manuals9AKK108467A9515
Popular Downloads
Data Sheet, Technical Information9AKK107991A8329
External Classifications and Standards
ETIM 9EC002281 - Distributor assembly with combination RCCB/MCB
ETIM 10EC002281 - Distributor assembly with combination RCCB/MCB
UNSPSC39121601
StandardsIEC 60947-2

Product Datasheet
