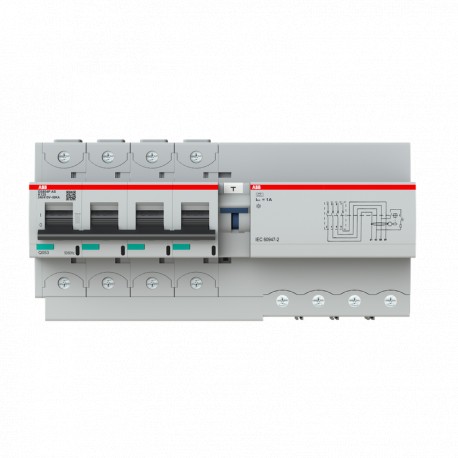

2CCG001333R0001 ABB Int. Com. DS800 4p K125 AS 50kA 1A
2CCG001333R0001
001333
ABB
1 Pcs.
Automation > Distributor assembly with combination RCCB/MCB
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Abb as part number 2CCG001333R0001, this selective four-pole residual current circuit breaker with overcurrent protection coordinates fault response times to protect complex, multi-tiered electrical grids. Such selective breakers are widely utilized in large facility power distribution to prevent localized faults from causing total system shutdowns.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated Operational Current (I e ): 125 A
- Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (415 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity (I cs ): (240 / 415 V AC) 40 kA
- Number of Protected Poles: 4
- Number of Poles: 4P
- Number of Earth Leakage Circuit Breakers (ELCBs): 1
- Operating Characteristic: Selective
- Release Type: K
- Accessories Available: Yes
- Short-Circuit Current Rating (SCCR): 1000 mA
- Tripping Characteristic: K
- Rated Operational Voltage: acc. to IEC 60947-2 690 V AC
- Rated Current (I n ): 125 A
- Rated Residual Current: 1000 mA
- Maximum Breaking Capacity: 50 kA
- Rated Frequency (f): 50 … 60 Hz
More info
▲| Technical | |
|---|---|
| Rated Operational Current (Ie) | 125 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (415 V AC) 50 kA |
| (440 V AC) 30 kA | |
| (500 V AC) 10 kA | |
| (690 V AC) 4.5 kA | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (240 / 415 V AC) 40 kA |
| Number of Protected Poles | 4 |
| Number of Poles | 4P |
| Number of Earth Leakage Circuit Breakers (ELCBs) | 1 |
| Operating Characteristic | Selective |
| Release Type | K |
| Accessories Available | Yes |
| Electrical | |
| Short-Circuit Current Rating (SCCR) | 1000 mA |
| Tripping Characteristic | K |
| Rated Operational Voltage | acc. to IEC 60947-2 690 V AC |
| Rated Current (In) | 125 A |
| Rated Residual Current | 1000 mA |
| Maximum Breaking Capacity | 50 kA |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | Total 55.1 W |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A1488 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230517 |
| REACH Declaration | 9AKK108470A9089 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250313 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Dimensions | |
| Product Net Width | 227.5 mm |
| Product Net Height | 108.2 mm |
| Product Net Depth / Length | 82.3 mm |
| Product Net Weight | 1757 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1757 g |
| E-Number (Norway) | 1628994 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A1488 |
| Declaration of Conformity - UKCA | 9AKK108468A1489 |
| Installation | |
| Instructions and Manuals | 9AKK108467A9515 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002281 - Distributor assembly with combination RCCB/MCB |
| ETIM 10 | EC002281 - Distributor assembly with combination RCCB/MCB |
| UNSPSC | 39121601 |
| Standards | IEC 60947-2 |
