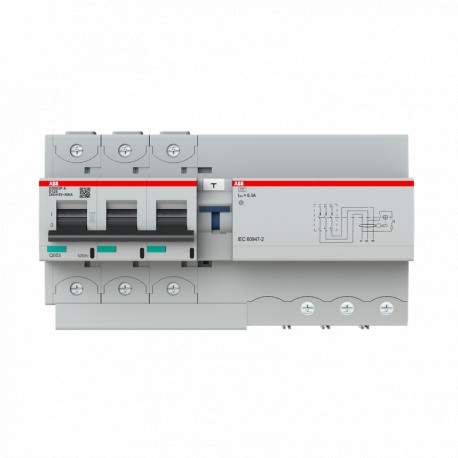

2CCG001316R0001 ABB Int. Com. DS800 3p D125 A 50kA 0.3A
2CCG001316R0001
001316
ABB
1 Pcs.
Automation > Distributor assembly with combination RCCB/MCB
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Abb under part number 2CCG001316R0001, this three-pole residual current circuit breaker with overcurrent protection safely interrupts abnormal electrical currents to protect industrial electrical systems. Such components are fundamental for preventing fire hazards and electrical shock in commercial installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated Operational Current (I e ): 125 A
- Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (415 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity (I cs ): (240 / 415 V AC) 40 kA
- Number of Protected Poles: 3
- Number of Poles: 3P
- Number of Earth Leakage Circuit Breakers (ELCBs): 1
- Operating Characteristic: Instantaneous
- Release Type: D
- Accessories Available: Yes
- Short-Circuit Current Rating (SCCR): 300 mA
- Tripping Characteristic: D
- Rated Operational Voltage: acc. to IEC 60947-2 690 V AC
- Rated Current (I n ): 125 A
- Rated Residual Current: 300 mA
- Maximum Breaking Capacity: 50 kA
- Rated Frequency (f): 50 … 60 Hz
More info
▲| Technical | |
|---|---|
| Rated Operational Current (Ie) | 125 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (415 V AC) 50 kA |
| (440 V AC) 30 kA | |
| (500 V AC) 10 kA | |
| (690 V AC) 4.5 kA | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (240 / 415 V AC) 40 kA |
| Number of Protected Poles | 3 |
| Number of Poles | 3P |
| Number of Earth Leakage Circuit Breakers (ELCBs) | 1 |
| Operating Characteristic | Instantaneous |
| Release Type | D |
| Accessories Available | Yes |
| Electrical | |
| Short-Circuit Current Rating (SCCR) | 300 mA |
| Tripping Characteristic | D |
| Rated Operational Voltage | acc. to IEC 60947-2 690 V AC |
| Rated Current (In) | 125 A |
| Rated Residual Current | 300 mA |
| Maximum Breaking Capacity | 50 kA |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | 45.7 W |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A1488 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230517 |
| REACH Declaration | 9AKK108470A9089 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250313 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Dimensions | |
| Product Net Width | 200.5 mm |
| Product Net Height | 108.2 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 730 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 730 g |
| E-Number (Norway) | 1628673 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A1488 |
| Declaration of Conformity - UKCA | 9AKK108468A1489 |
| Installation | |
| Instructions and Manuals | 9AKK108467A9515 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002281 - Distributor assembly with combination RCCB/MCB |
| ETIM 10 | EC002281 - Distributor assembly with combination RCCB/MCB |
| Standards | IEC 60947-2 |
