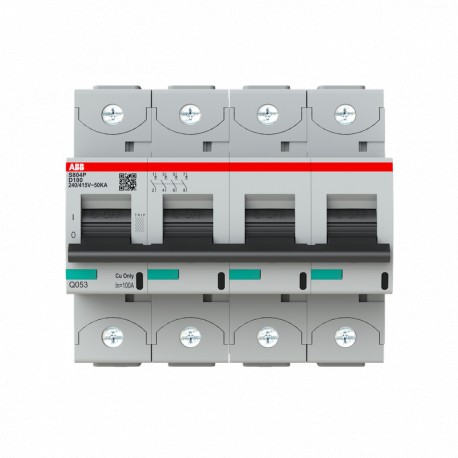

2CCG001248R0001 ABB Int. aut. S804P-D100 4p 100A D 50kA
2CCG001248R0001
2CCG001248R0001
ABB
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part number 2CCG001248R0001 represents a high-capacity automatic circuit breaker setup from the S800 series, built for heavy industrial distribution systems. These robust components provide superior short-circuit interruption and accept a wide array of auxiliary attachments for customized control panel integration. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 2CCS800900R0011: S800-AUX Auxiliary Contact
- 2CCS800900R0021: S800-AUX/ALT Auxiliary / Signal Contact
- 2CCS800900R0201: S800-SOR12 Shunt Operation Release
- 2CCS800900R0191: S800-SOR24 Shunt Operation Release
- 2CCS800900R0221: S800-SOR130 Shunt Operation Release
- 2CCS800900R0211: S800-SOR250 Shunt Operation Release
- 2CCS800900R0231: S800-SOR400 Shunt Operation Release
- 2CCS800900R0241: S800-UVR36 Undervoltage Release
- 2CCS800900R0251: S800-UVR60 Undervoltage Release
- 2CCS800900R0261: S800-UVR130 Undervoltage Release
- 2CCS800900R0271: S800-UVR250 Undervoltage Release
- 2CCS800900R0181: S800-CT2125 Cage Terminal
- 2CCS800900R0151: S800-CT4125 Cage Terminal
- 2CCS800900R0161: S800-RT2125 Ring Terminal Cable Connection
- 2CCS800900R0131: S800-RT4125 Ring Terminal Cable Connection
- 2CCS800900R0051: S800-PLL Locking Device IEC
More info
▲- Extended Product Type:
- S804P-D100
- Product ID:
- 2CCG001248R0001
- EAN:
- 7612271517175
- Catalog Description:
- S804P-D100 High Performance MCB
- Long Description:
- S804P-D100 High Performance Circuit Breaker. D Characteristic. 50kA, 100A, 4P
Accessories
| Identifier | Description | Type | Qty | Unit Of Measure |
|---|---|---|---|---|
| 2CCS800900R0011 | S800-AUX Auxiliary Contact | S800-AUX | 1 | piece |
| 2CCS800900R0021 | S800-AUX/ALT Auxiliary / Signal Contact | S800-AUX/ALT | 1 | piece |
| 2CCS800900R0201 | S800-SOR12 Shunt Operation Release | S800-SOR12 | 1 | piece |
| 2CCS800900R0191 | S800-SOR24 Shunt Operation Release | S800-SOR24 | 1 | piece |
| 2CCS800900R0221 | S800-SOR130 Shunt Operation Release | S800-SOR130 | 1 | piece |
| 2CCS800900R0211 | S800-SOR250 Shunt Operation Release | S800-SOR250 | 1 | piece |
| 2CCS800900R0231 | S800-SOR400 Shunt Operation Release | S800-SOR400 | 1 | piece |
| 2CCS800900R0241 | S800-UVR36 Undervoltage Release | S800-UVR36 | 1 | piece |
| 2CCS800900R0251 | S800-UVR60 Undervoltage Release | S800-UVR60 | 1 | piece |
| 2CCS800900R0261 | S800-UVR130 Undervoltage Release | S800-UVR130 | 1 | piece |
| 2CCS800900R0271 | S800-UVR250 Undervoltage Release | S800-UVR250 | 1 | piece |
| 2CCS800900R0181 | S800-CT2125 Cage Terminal | S800-CT2125 | 1 | pack |
| 2CCS800900R0151 | S800-CT4125 Cage Terminal | S800-CT4125 | 1 | pack |
| 2CCS800900R0161 | S800-RT2125 Ring Terminal Cable Connection | S800-RT2125 | 1 | pack |
| 2CCS800900R0131 | S800-RT4125 Ring Terminal Cable Connection | S800-RT4125 | 1 | pack |
| 2CCS800900R0051 | S800-PLL Locking Device IEC | S800-PLL | 1 | pack |
| 2CCS800017R0001 | S800U-PLL UL Locking Device | S800U-PLL | 1 | piece |
| 2CCS800900R0031 | S800-IP9 Intermediate Piece | S800-IP9 | 1 | piece |
| 2CCS800900R0501 | S800-RSU-H Remote Switching Unit | S800-RSU-H | 1 | piece |
| 2CCS800900R0041 | S800-RD Rotary Drive | S800-RD | 1 | piece |
| 1SDA060150R0001 | S800-RHE-H Anthracite Rotary Handle | S800-RHE-H | 1 | piece |
| 1SDA060151R0001 | S800-RHE-EM Red Rotary Handle | S800-RHE-EM | 1 | piece |
| 1SDA060179R0001 | S800-RHE-S Axial Extension | S800-RHE-S | 1 | piece |
| 1SDA060180R0001 | S800-RHE-IP54 Kit IP54 | S800-RHE-IP54 | 1 | piece |
Technical
- Standards:
- IEC/EN 60947-2
- Tripping Characteristic:
- D
- Rated Voltage (Ur):
- AccToIec609472 690 V AC
AccToIec609472 500 V DC
- Rated Operational Voltage:
- acc. to IEC 60947-2 690 V AC
acc. to IEC 60947-2 500 V DC
- Rated Insulation Voltage (Ui):
- 690 V
- Rated Impulse Withstand Voltage (Uimp):
- 6 kV
- Rated Current (In):
- 100 A
- Rated Short-Circuit Capacity:
- (230 / 400 V AC) 15 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (240 / 415 V AC) 50 kA
(254 / 440 V AC) 30 kA
(289 / 500 V AC) 10 kA
(400 / 690 V AC) 4.5 kA
(500 V DC) 30 kA
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (240 / 415 V AC) 40 kA
- Frequency (f):
- 50/60 Hz
- Rated Frequency (f):
- 50…60 Hz
- Power Loss:
- at Rated Operating Conditions per Pole 8 W
- Contact Position Indication:
- ON / OFF / TRIP
- Number of Poles:
- 4
- Overvoltage Category:
- III
- Tightening Torque:
- 3.5 N·m
- Release Type:
- D
- Actuator Marking:
- I / O
- Mounting on DIN Rail:
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position:
- Any
- Recommended Screw Driver:
- Pozidriv 2
- Accessories Available:
- Yes
- Connecting Capacity:
- Flexible 0...50 mm²
Rigid 0...70 mm²
Environmental
- Ambient Air Temperature:
- Operation -25 ... +60 °C
Storage -40 ... +70 °C
- Reference Ambient Air Temperature:
- 30 °C
- Degree of Protection:
- IP20
- Pollution Degree:
- 3
- REACH Declaration:
- 9AKK108468A0699
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Width in Number of Modular Spacings:
- 6
- Product Net Width:
- 106.0mm
- Product Net Height:
- 95.0mm
- Product Net Depth / Length:
- 82.5mm
- Product Net Weight:
- 0.980kg
Ordering
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Gross Weight:
- 1.01 kg
- Customs Tariff Number:
- 85362090
- E-Number (Finland):
- 3217588
- Country of Origin:
- Switzerland (CH)
Certificates and Declarations
- CB Certificate:
- 9AKK108468A1243
- CEBEC Certificate:
- 9AKK108468A1244
- Declaration of Conformity - CE:
- 9AKK108468A0836
- Declaration of Conformity - UKCA:
- 9AKK108468A0837
Popular Downloads
- Instructions and Manuals:
- 9AKK108467A9512
Classifications
- ETIM 8:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 9:
- EC000042 - Miniature circuit breaker (MCB)
- EPLAN Catalog Tree:
- Electrical engineering / Protection devices / General
- EPLAN Function Definition:
- 501.4.1
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Business
- eClass:
- V11.0 : 27141901
- Object Classification Code:
- F
