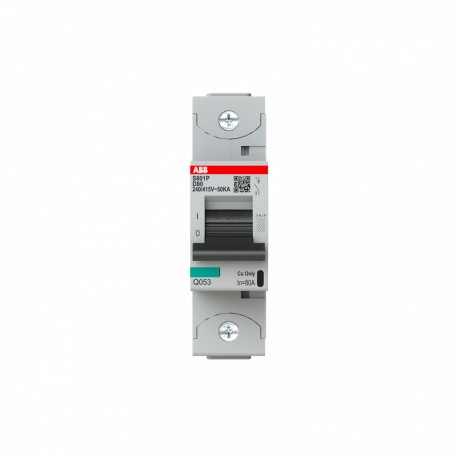

ABB 2CCG001238R0001 2CCG001238R0001 ABB Int. aut. S801P-D80 1p 80A D 50kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCG001238R0001 ABB Int. aut. S801P-D80 1p 80A D 50kA

2CCG001238R0001

001238

ABB

1 Pcs.

Int. aut. S801P-D80 1p 80A D 50kA S801P-D80 High Performance MCB

Automation > Miniature circuit breaker (MCB)
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    S801P-D80
  • Product ID:
    2CCG001238R0001
  • EAN:
    7612271517076
  • Catalog Description:
    S801P-D80 High Performance MCB
  • Long Description:
    S801P-D80 High Performance Circuit Breaker. D Characteristic. 50kA, 80A, 1P
+
–

Accessories

IdentifierDescriptionTypeQtyUnit Of Measure
2CCS800900R0011
S800-AUX Auxiliary ContactS800-AUX1piece
2CCS800900R0021
S800-AUX/ALT Auxiliary / Signal ContactS800-AUX/ALT1piece
2CCS800900R0201
S800-SOR12 Shunt Operation ReleaseS800-SOR121piece
2CCS800900R0191
S800-SOR24 Shunt Operation ReleaseS800-SOR241piece
2CCS800900R0221
S800-SOR130 Shunt Operation ReleaseS800-SOR1301piece
2CCS800900R0211
S800-SOR250 Shunt Operation ReleaseS800-SOR2501piece
2CCS800900R0231
S800-SOR400 Shunt Operation ReleaseS800-SOR4001piece
2CCS800900R0241
S800-UVR36 Undervoltage ReleaseS800-UVR361piece
2CCS800900R0251
S800-UVR60 Undervoltage ReleaseS800-UVR601piece
2CCS800900R0261
S800-UVR130 Undervoltage ReleaseS800-UVR1301piece
2CCS800900R0271
S800-UVR250 Undervoltage ReleaseS800-UVR2501piece
2CCS800900R0181
S800-CT2125 Cage TerminalS800-CT21251pack
2CCS800900R0151
S800-CT4125 Cage TerminalS800-CT41251pack
2CCS800900R0161
S800-RT2125 Ring Terminal Cable ConnectionS800-RT21251pack
2CCS800900R0131
S800-RT4125 Ring Terminal Cable ConnectionS800-RT41251pack
2CCS800900R0051
S800-PLL Locking Device IECS800-PLL1pack
2CCS800017R0001
S800U-PLL UL Locking DeviceS800U-PLL1piece
2CCS800900R0031
S800-IP9 Intermediate PieceS800-IP91piece
2CCS800900R0501
S800-RSU-H Remote Switching UnitS800-RSU-H1piece
2CCS800900R0041
S800-RD Rotary DriveS800-RD1piece
1SDA060150R0001
S800-RHE-H Anthracite Rotary HandleS800-RHE-H1piece
1SDA060151R0001
S800-RHE-EM Red Rotary HandleS800-RHE-EM1piece
1SDA060179R0001
S800-RHE-S Axial ExtensionS800-RHE-S1piece
1SDA060180R0001
S800-RHE-IP54 Kit IP54S800-RHE-IP541piece

Technical

  • Standards:
    IEC/EN 60947-2
  • Tripping Characteristic:
    D
  • Rated Voltage (Ur):
    AccToIec609472 400 V AC
    AccToIec609472 125 V DC
  • Rated Operational Voltage:
    acc. to IEC 60947-2 400 V AC
    acc. to IEC 60947-2 125 V DC
  • Rated Insulation Voltage (Ui):
    690 V
  • Rated Impulse Withstand Voltage (Uimp):
    6 kV
  • Rated Current (In):
    80 A
  • Rated Short-Circuit Capacity:
    (230 / 400 V AC) 25 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (240 / 415 V AC) 50 kA
    (254 / 440 V AC) 30 kA
    (289 / 500 V AC) 15 kA
    (400 / 690 V AC) 6 kA
    (125 V DC) 30 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (240 / 415 V AC) 40 kA
  • Frequency (f):
    50/60 Hz
  • Rated Frequency (f):
    50…60 Hz
  • Power Loss:
    at Rated Operating Conditions per Pole 6.4 W
  • Contact Position Indication:
    ON / OFF / TRIP
  • Number of Poles:
    1
  • Overvoltage Category:
    III
  • Tightening Torque:
    3.5 N·m
  • Release Type:
    D
  • Actuator Marking:
    I / O
  • Mounting on DIN Rail:
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position:
    Any
  • Recommended Screw Driver:
    Pozidriv 2
  • Accessories Available:
    Yes
  • Connecting Capacity:
    Flexible 0...50 mm²
    Rigid 0...70 mm²

Environmental

  • Ambient Air Temperature:
    Operation -25 ... +60 °C
    Storage -40 ... +70 °C
  • Reference Ambient Air Temperature:
    30 °C
  • Degree of Protection:
    IP20
  • Pollution Degree:
    3
  • REACH Declaration:
    9AKK108468A0699
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Width in Number of Modular Spacings:
    1.5
  • Product Net Width:
    27.0mm
  • Product Net Height:
    95.0mm
  • Product Net Depth / Length:
    82.5mm
  • Product Net Weight:
    0.240kg

Ordering

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Gross Weight:
    0.265 kg
  • Customs Tariff Number:
    85362090
  • E-Number (Finland):
    3217372
  • Country of Origin:
    Switzerland (CH)

Certificates and Declarations

Popular Downloads

Classifications

  • ETIM 8:
    EC000042 - Miniature circuit breaker (MCB)
  • ETIM 9:
    EC000042 - Miniature circuit breaker (MCB)
  • EPLAN Catalog Tree:
    Electrical engineering / Protection devices / General
  • EPLAN Function Definition:
    501.1.1
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Business
  • eClass:
    V11.0 : 27141901
  • Object Classification Code:
    F

ETIM for 2CCG001238R0001 Circuit breakers and fuses (EC000042)
Feature Name Feature Value
Built-in depth (EF000218) 82.5 mm
Release characteristic (EF000889) D
Number of poles (total) (EF008618) 1
Number of protected poles (EF005548) 1
Rated current (EF000227) 80 A
Rated voltage (EF000228) 230 V
Rated insulation voltage Ui (EF001366) 690 V
Rated impulse withstand voltage Uimp (EF011980) 6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (EF009556) 25 kA
Voltage type (EF000187) AC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) 25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) 50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) 6 kA
Frequency (EF000416) 50 Hz
Current limiting class (EF002568) 3
Flush-mounted installation (EF007517) No
Concurrently switching neutral conductor (EF005997) No
Over voltage category (EF002569) 3
Pollution degree (EF002570) 3
Additional equipment possible (EF008148) Yes
Width in number of modular spacings (EF002950) 1.5
Degree of protection (IP) (EF005474) IP20
Ambient temperature during operating (EF007515) -25 °C
Connectable conductor cross section multi-wired (EF007343) 1 mm²
Connectable conductor cross section solid-core (EF007337) 1 mm²
