ABB 2CCG001237R0001 2CCG001237R0001 ABB Int. aut. S804P-C125 4p 125A C 50kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

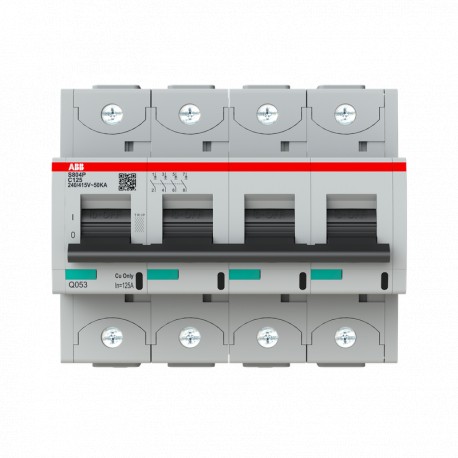

2CCG001237R0001 ABB Int. aut. S804P-C125 4p 125A C 50kA

2CCG001237R0001

001237

ABB

1 Pcs.

Int. aut. S804P-C125 4p 125A C 50kA S804P-C125 High Performance Circuit Breaker. C Characteristic. 50kA, 125A, 4P

Automation > Miniature circuit breaker (MCB)
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108471A1082
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 86.29 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions9AKK108470A2575
Environmental Product Declaration - EPD9AKK108470A1695
9AKK108470A1696
Technical
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 50 kA
(440 V AC) 30 kA
(500 V AC) 10 kA
(690 V AC) 4.5 kA
(500 V DC) 30 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(240 / 415 V AC) 40 kA
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles4
Number of Poles4P
Tightening Torque3.5 N·m
Release TypeC
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 1...50 mm²
Rigid 1...70 mm²
Wire Stripping Length19 mm
Electrical
Tripping CharacteristicC
Rated Operational Voltageacc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 690 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Input Voltage TypeAC/DC
Rated Current (In)125 A
Rated Short-Circuit Capacity(400 V AC) 15 kA
Frequency (f)50/60 Hz
Rated Frequency (f)50/60 Hz
Power LossTotal 37.6 W
at Rated Operating Conditions per Pole 9.4 W
Overvoltage CategoryIII
Material Compliance
RoHS Declaration9AKK108468A0836
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20230505
REACH Declaration9AKK108470A9089
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250313
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -40 ... 70 °C
Storage -40 ... 70 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
Pollution Degree3
Dimensions
Width in Number of Modular Spacings6.5
Product Net Width117.0 mm
Product Net Height95.0 mm
Product Net Depth / Length82.5 mm
Product Net Weight1005 g
Built-In Depth (t2)82.5 mm
Engineering
EPLAN Data9AAF605105_EPLAN
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight1040 g
E-Number (Finland)3217371
E-Number (Norway)1629271
E-Number (Sweden)2101441
Certificates and Declarations
CB Certificate9AKK108468A1243
CCC Certificate9AKK108468A8539
CEBEC Certificate9AKK108468A1244
Declaration of Conformity - CE9AKK108468A0836
Declaration of Conformity - UKCA9AKK108468A0837
DNV GL Certificate2CCC413018D0201
ESTI Certificate9AKK108468A2302
KC Certificate9AKK108468A8755
LR Certificate9AKK108468A8541
RINA Certificate9AKK108469A1379
VDE Certificate9AKK108468A6941
Installation
Instructions and Manuals2CCC413016M0008
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
Popular Downloads
Data Sheet, Technical Information9AKK108468A9560
9AKK108468A9561
9AKK108468A9562
External Classifications and Standards
ETIM 9EC000042 - Miniature circuit breaker (MCB)
ETIM 10EC000042 - Miniature circuit breaker (MCB)
UNSPSC39121603
eClassV11.0 : 27141901
IDEA Granular Category Code (IGCC)4899 >> Miniature circuit breaker (MCB) screw-in model
Object Classification CodeF
StandardsIEC/EN 60947-2
UL 1077

ETIM for 2CCG001237R0001 Circuit breakers and fuses (EC000042)
Feature Name Feature Value
Built-in depth (EF000218) 82.5 mm
Release characteristic (EF000889) C
Number of poles (total) (EF008618) 4
Number of protected poles (EF005548) 4
Rated current (EF000227) 125 A
Rated voltage (EF000228) 400 V
Rated insulation voltage Ui (EF001366) 690 V
Rated impulse withstand voltage Uimp (EF011980) 6 kV
Voltage type (EF000187) AC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) 15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) 50 kA
Frequency (EF000416) 50 Hz
Current limiting class (EF002568) 3
Flush-mounted installation (EF007517) No
Concurrently switching neutral conductor (EF005997) No
Over voltage category (EF002569) 3
Pollution degree (EF002570) 3
Additional equipment possible (EF008148) Yes
Width in number of modular spacings (EF002950) 6.5
Degree of protection (IP) (EF005474) IP20
Ambient temperature during operating (EF007515) -25 °C
Connectable conductor cross section multi-wired (EF007343) 1 mm²
Connectable conductor cross section solid-core (EF007337) 1 mm²

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
