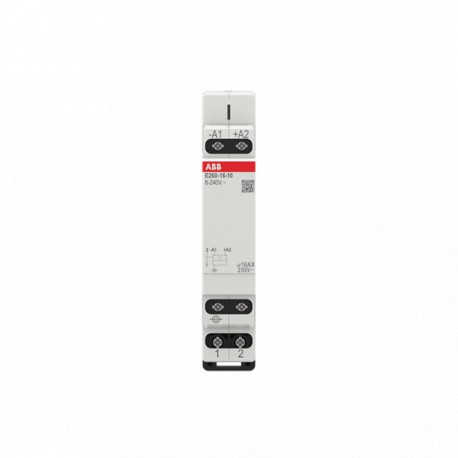

2CCG000981R0001 ABB Electron Telerr. E260-16-10 16A 1NA
2CCG000981R0001
000981
ABB
1 Pcs.
Electron Telerr. E260-16-10 16A 1NA
E260-16-10 Electronic Latching Relay
Automation > Latching relay
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 2CCG000981R0001 electronic telerruptor functions as a solid-state latching relay designed for precise electronic pulse control of lighting and industrial power loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function: electronic latching relay
- Rated Control Circuit Voltage (U c ): 8 ... 240 V AC
- Electrical Endurance: 50000 cycle
- Number of Contacts: 1
- Tightening Torque: Control Circuit 0.4 N·m
- Impulse Duration: Minimum 200 ms
- Recommended Screw Driver: PH1
- Number of Batteries: 0
- Wire Stripping Length: Control Circuit 6 mm²
- Switching Noise: Distance 1 m 55 dB
- Rated Control Supply Voltage (U s ): 8 … 240 V AC
- Rated Current (I n ): 16 A
- Rated Frequency (f): 50 … 60 Hz
- Maximum Lamp Load: Incandescent 4000 W
- Power Loss: 1.2 W
- Number of Contacts NO: 1
More info
▲| Technical | |
|---|---|
| Function | electronic latching relay |
| Rated Control Circuit Voltage (Uc) | 8 ... 240 V AC |
| Electrical Endurance | 50000 cycle |
| Number of Contacts | 1 |
| Tightening Torque | Control Circuit 0.4 N·m |
| Output Circuit 0.5 N·m | |
| Impulse Duration | Minimum 200 ms |
| Recommended Screw Driver | PH1 |
| Number of Batteries | 0 |
| Wire Stripping Length | Control Circuit 6 mm² |
| Output Circuit 6.5 mm² | |
| Switching Noise | Distance 1 m 55 dB |
| Electrical | |
| Rated Control Supply Voltage (Us) | 8 … 240 V AC |
| 8 … 240 V DC | |
| 230 V AC | |
| Rated Current (In) | 16 A |
| Rated Frequency (f) | 50 … 60 Hz |
| Maximum Lamp Load | Incandescent 4000 W |
| Fluorescent (Electronic Ballast) 500 V·A | |
| Power Loss | 1.2 W |
| Number of Contacts NO | 1 |
| Design | |
| Housing Material | Moulded |
| RAL Number | RAL 7035 - Light Grey |
| Color | Light grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108469A0232 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240530 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +55 °C |
| Storage -30 ... +70 °C | |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Dimensions | |
| Product Net Width | 17.6 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64 mm |
| Product Net Weight | 0.066 kg |
| Dimension Diagram | 9AKK108469A0162 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.09 kg |
| E-Number (Sweden) | 4002071 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108469A0232 |
| Declaration of Conformity - UKCA | 9AKK108469A0233 |
| VDE Certificate | 9AKK108469A0230 |
| Installation | |
| Instructions and Manuals | 9AKK108467A1173 |
| Wiring Diagram | 9AKK108469A0179 |
| 9AKK108469A0178 | |
| Mounting Type | DIN-Rail |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC441020C0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000188 - Latching relay |
| ETIM 10 | EC000188 - Latching relay |
| eClass | V11.0 : 27142306 |
| Standards | IEC 60669-1 |
| IEC 60669-2-1 | |
| Standardization Body | VDE |
