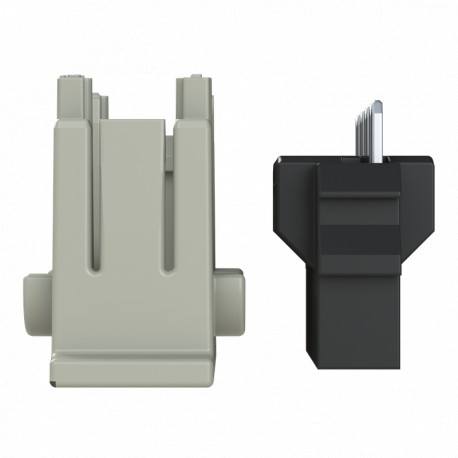

ABB 2CCG000244R0001 2CCG000244R0001 ABB InSite Connector Pack (35pcs) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCG000244R0001 ABB InSite Connector Pack (35pcs)

2CCG000244R0001

000244

ABB

1 Pcs.

InSite Connector Pack (35pcs) Connector Set for Insite Flatcable 9.25 mm

Cables > PLC connection cable
Other modular devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB 2CCG000244R0001 is an InSite connector pack designed to support modular data acquisition networks in switchgear installations. Connector accessories organize wiring architectures and maintain secure physical links for industrial communication buses. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Product Compatibility: SCU100 & SCU200
  • Communication Interface: InSite bus(Flat cable)
  • Connection Type: Cable
  • Communication: Modbus RTU,TCP/IP
  • Number of Batteries: 0
  • RoHS Declaration: 9AKK108470A6924
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20241024
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20250225
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Business
  • Product Net Width: 14.4 mm
  • Product Net Height: 9.5 mm

More info

▲
Technical
Product CompatibilitySCU100 & SCU200
Communication InterfaceInSite bus(Flat cable)
Connection TypeCable
CommunicationModbus RTU,TCP/IP
Rest API
DHCP
HTTPS
NTP
SFTP
Technical InformationThe SCU100 control unit is designed for comprehensive monitoring functions. It can connect to large number of current sensors, I/O modules, and smart signaling devices. Its robust hardware and integrated metering capabilities make the SCU100 the ideal choice for applications that require extensive monitoring functions.
Number of Batteries0
Connection Mode and Capacity96 Flat cable devices (96 Current sensors or 24 I/O modules or 96 Smart auxiliaries or combination of them totalling to 96)
16 Modbus RTU
16 Modbus TCP
Material Compliance
RoHS Declaration9AKK108470A6924
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20241024
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250225
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Dimensions
Product Net Width14.4 mm
Product Net Height9.5 mm
Product Net Depth / Length9.25 mm
Product Net Weight24 g
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight27 g
E-Number (Finland)6719001
E-Number (Norway)8027318
Certificates and Declarations
DeclarationCE
REACH
RoHS
Declaration of Conformity - CE9AKK107680A4357
EU Data Act Compliance DeclarationNot applicable
Installation
Instructions and Manuals9AKK107680A1728
Popular Downloads
Data Sheet, Technical Information9AKK107680A1653
External Classifications and Standards
ETIM 9EC000237 - PLC connection cable
ETIM 10EC000237 - PLC connection cable
UNSPSC41111928
eClassV11.0 : 27371390
Object Classification CodeP
